Body Side (2016 - 20)

Fig 1: Body Dimension Measuring Point Symbols

GLL155440

Courtesy of VOLVO CARS CORPORATION

Measure from the center.
Measure from the edge.
Measure from the cut mark.

GLL155442

Courtesy of VOLVO CARS CORPORATION

Measurement takes place from the bottom of the recess. See illustration above. If only a measuring point symbol is shown this applies to both measuring points. Otherwise the symbols are shown on one side each of the measurement designation in the figure.

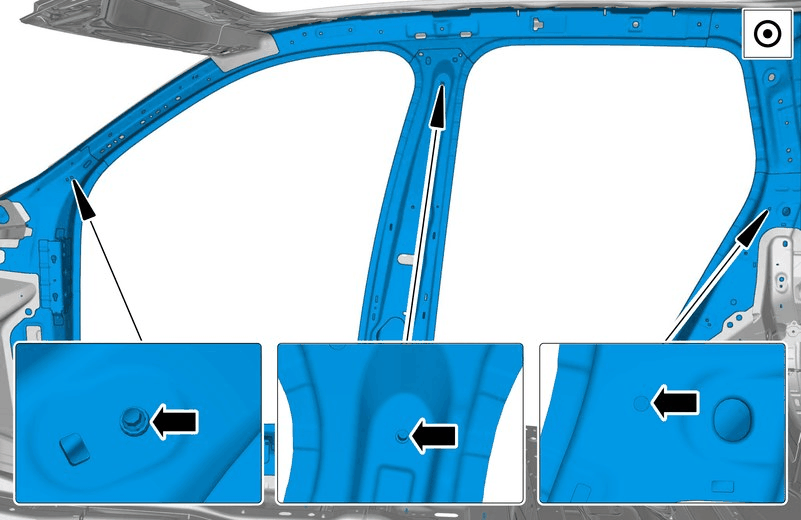

Fig 2: Interior Body Side Position Measurement Points (1 Of 2)

GLL1027394

Courtesy of VOLVO CARS CORPORATION

Fig 3: Interior Body Side Position Measurement Points (2 Of 2)

GLL1030110

Courtesy of VOLVO CARS CORPORATION

Fig 4: Interior Body Side Position Dimensions And Measurement Locations

GLL1040723

Courtesy of VOLVO CARS CORPORATION

Fig 5: Vehicle Interior Floor Position Measurement Points

GLL1032902

Courtesy of VOLVO CARS CORPORATION

Fig 6: Vehicle Interior Floor Position Dimensions And Measurement Locations

GLL1040547

Courtesy of VOLVO CARS CORPORATION

Fig 7: Interior Side Sill Position Measurement Points (1 Of 2)

GLL1013209

Courtesy of VOLVO CARS CORPORATION

Fig 8: Interior Side Sill Position Measurement Points (2 Of 2)

GLL1019233

Courtesy of VOLVO CARS CORPORATION

Fig 9: Interior Side Sill Position Dimensions And Measurement Locations (1 Of 2)

GLL1021733

Courtesy of VOLVO CARS CORPORATION

Fig 10: Interior Side Sill Position Dimensions And Measurement Locations (2 Of 2)

GLL1019616

Courtesy of VOLVO CARS CORPORATION

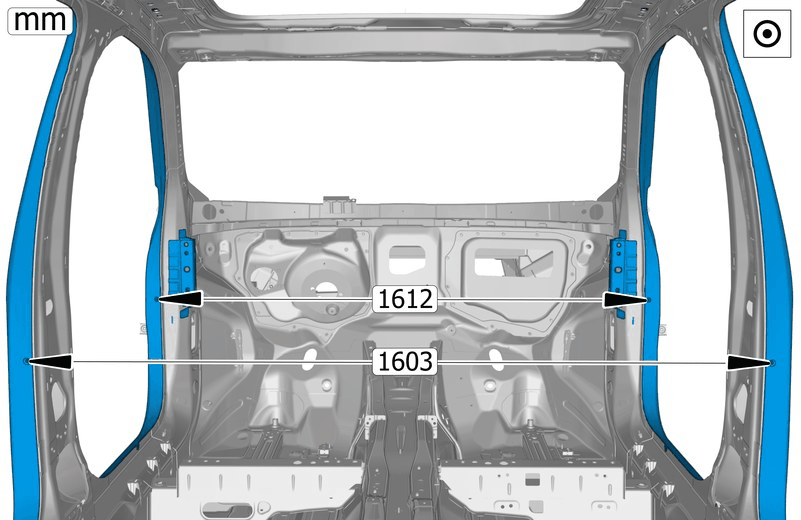

Fig 11: Interior Body Pillar Width Dimensions And Measurement Locations

GLL1027586

Courtesy of VOLVO CARS CORPORATION
