Active Safety Domain Master (ASDM), Adjustment [2016-2020]: Adjustment

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

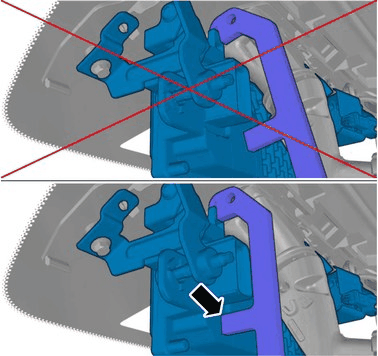

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

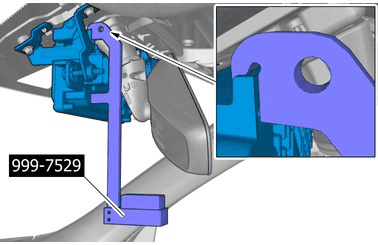

Ensure that the component is in contact with the surface, with no space.

Courtesy of VOLVO CARS CORPORATION

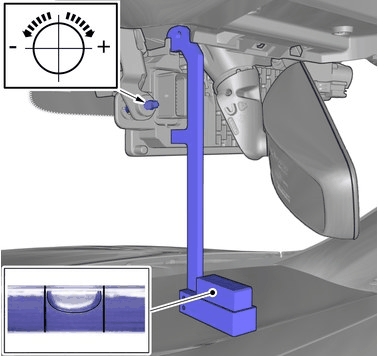

Adjust the component to a horizontal position.
