Fuel Tank Filler Cover [2016-2019]: Removal
 Courtesy of VOLVO CARS CORPORATION
|

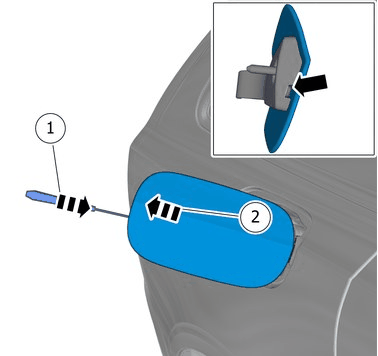

Remove the fasteners.
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the screws.
Loosen the clips.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|
Release the lock.
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|
NOTE:
The graphic shows the back of the component before removal.
 Courtesy of VOLVO CARS CORPORATION
|
CAUTION:
Make sure not to damage painted surfaces.
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|

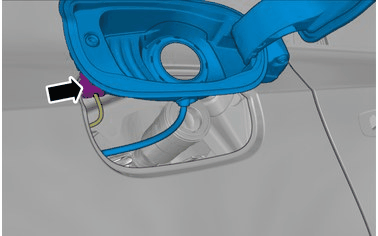

Disconnect the connector.
