Emergency Opening Sun Roof [2016-2020]: Removal
CAUTION:
Take extra care not to crease the headliner.
NOTE:

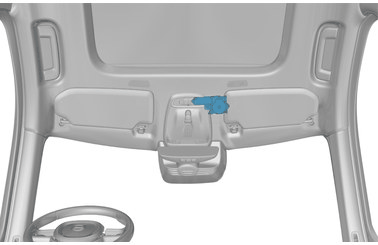

Orientation view
Remove the following items:
- Sun visor, refer to: SUN VISOR
- A-pillar trim panel, refer to: A-PILLAR TRIM PANEL
- inner rear view mirror, refer to: INNER REAR VIEW MIRROR

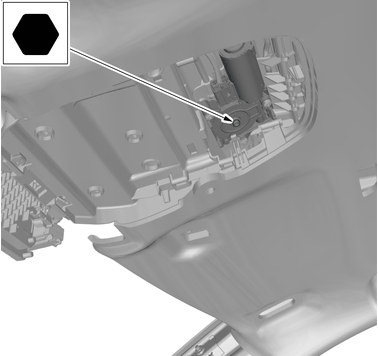

Torque: entry handle, for bracket, 6Nm
On both sides.

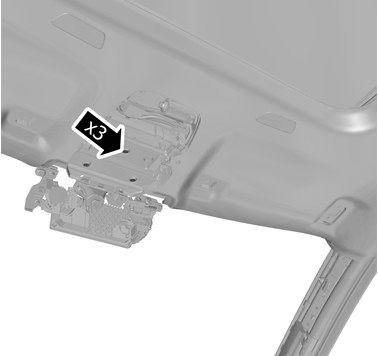

Loosen the screws.
CAUTION:
Take extra care not to crease the headliner.

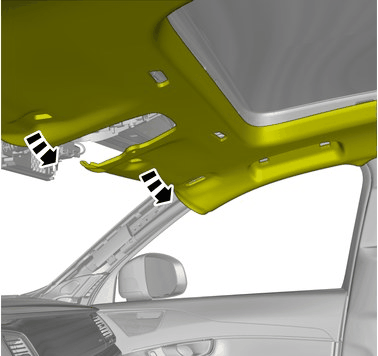

Fold marked part aside.
