Wiper Arm [2016-2020]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
CAUTION:
Make sure that the motor is in the park position.
Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

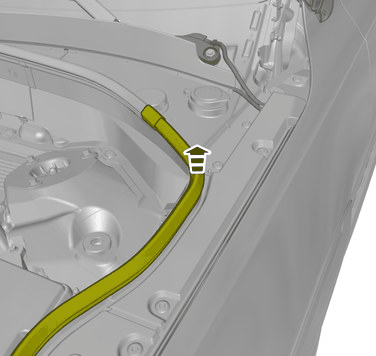

Fold marked part aside.

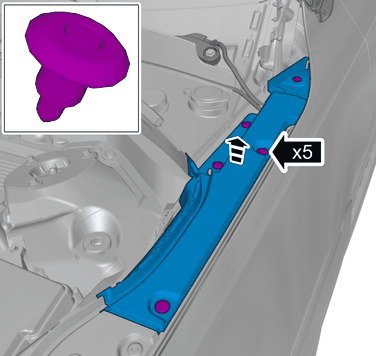

Remove the clips.
Remove the marked part.
Remove the marked part.
On both sides.

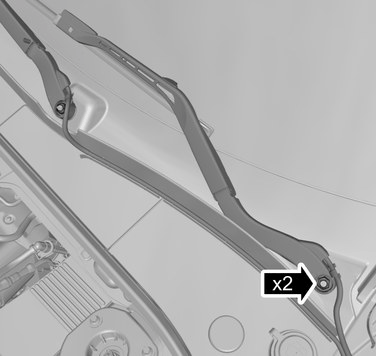

Remove the nuts.
Torque: Windshield wiper arm, 28Nm

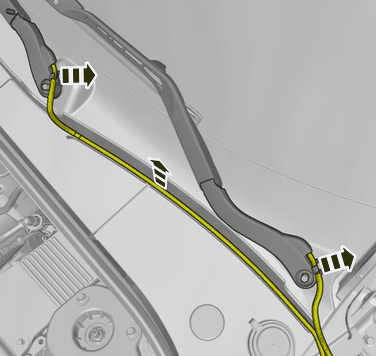

Fold marked part aside.
CAUTION:
The number of connectors, cables and cable ties may vary depending on the vehicle specification.

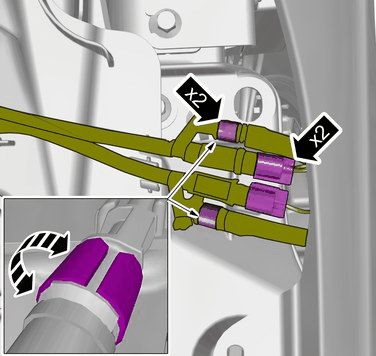

Disconnect the connectors.

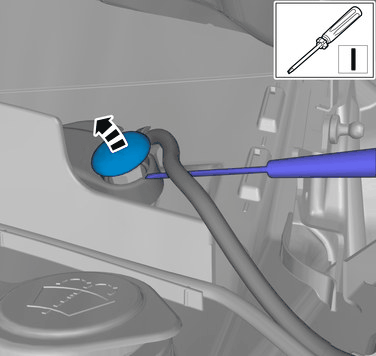

Loosen the clips.
On both sides.

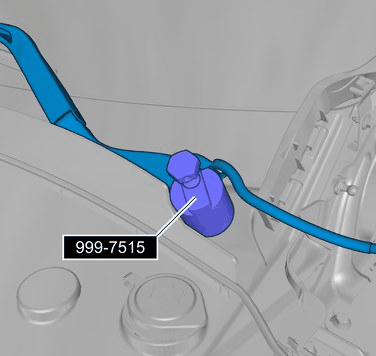

Refer to: Special Tool: 999 7515
