Heating Element Backrest Cushion [2016-2020]: Removal

Remove back cushion outer rear seat, refer to: BACK CUSHION OUTER BACKSEAT

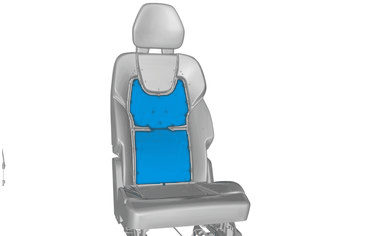

GLL1036967Courtesy of VOLVO CARS CORPORATION
NOTE:

Orientation view

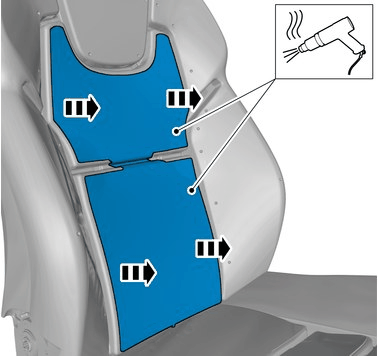

GLL1034462Courtesy of VOLVO CARS CORPORATION
CAUTION:

Pull carefully.

Loosen the marked detail/details.
