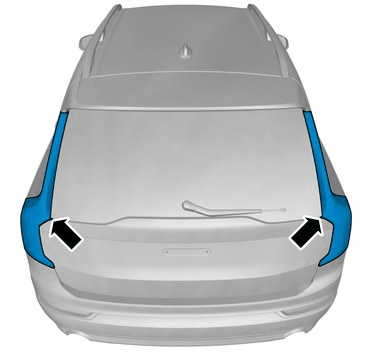

Tail Lamp [2016-2020]: Removal

Courtesy of VOLVO CARS CORPORATION

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Loosen relevant side casing bumper rear, refer to: COVER BUMPER REAR

Remove relevant side panel cargo compartment, refer to: SIDE PANEL LOADSPACE

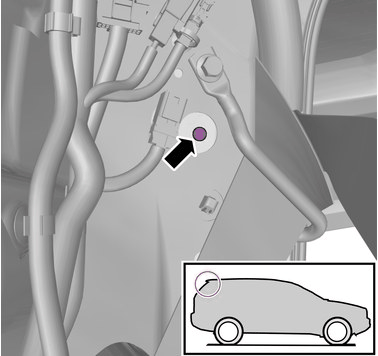

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  Tail lamp, to body, 3Nm

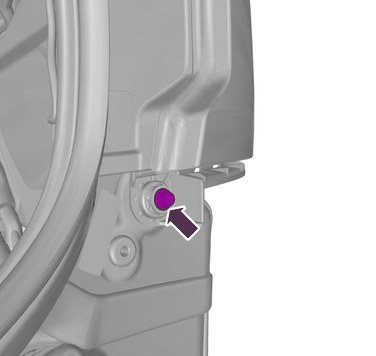

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  Tail lamp, to body, 3Nm

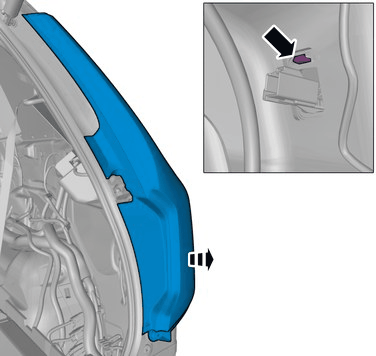

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

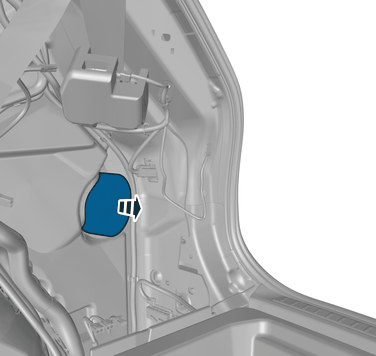

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Torque:  Tail lamp, to body, 3Nm

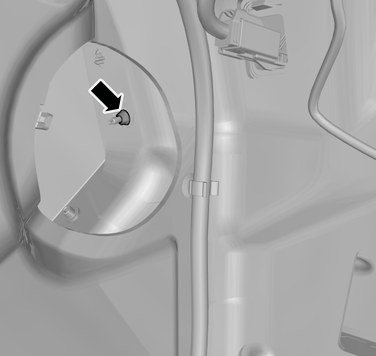

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

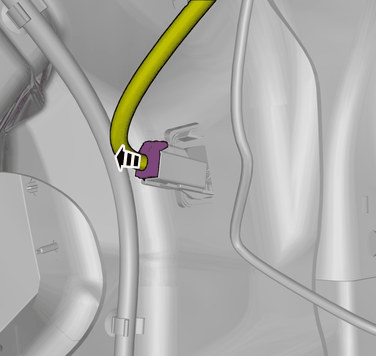

Courtesy of VOLVO CARS CORPORATION

Release the lock.
