Headlamp Lens, Restoration [2016-2020]: Reconditioning

NOTE:

When performing this operation it is recommended to use dust extraction.

NOTE:

Make sure the workstation is clean and dust free.

On both sides.

Remove the headlamp, refer to: HEADLAMPS

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

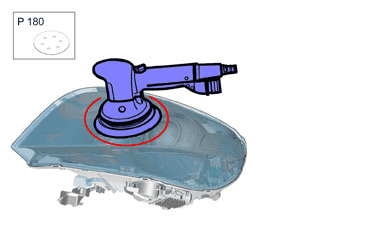

NOTE:

Make sure that all varnish is gone.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

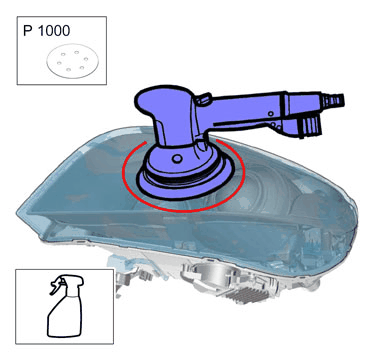

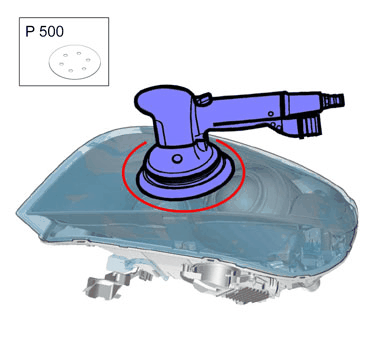

WET SANDING

Courtesy of VOLVO CARS CORPORATION

WET SANDING

Courtesy of VOLVO CARS CORPORATION

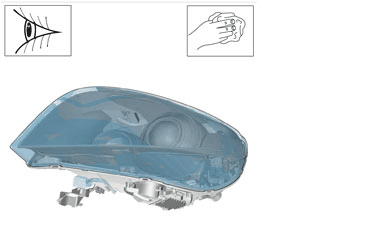

Wipe dry.

Courtesy of VOLVO CARS CORPORATION

Apply a thin and even layer.

Use: Repair kit headlamp glass, China 31386953

Use: Repair kit headlamp glass, EU 31386875

Use: Repair kit headlamp glass, US 32219322

Courtesy of VOLVO CARS CORPORATION

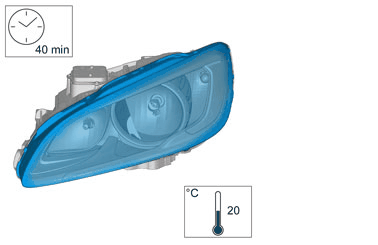

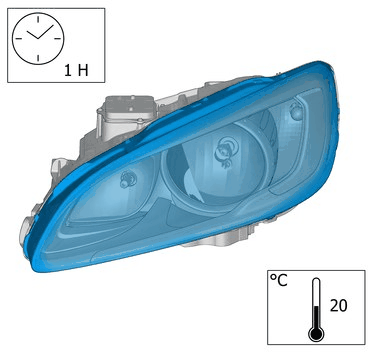

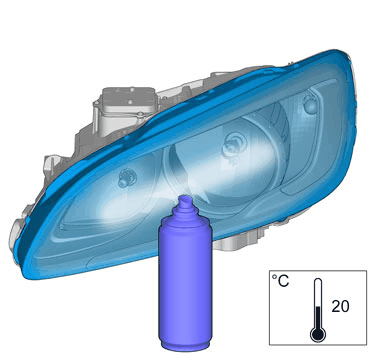

Apply an even layer.

Use: Varnish,

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

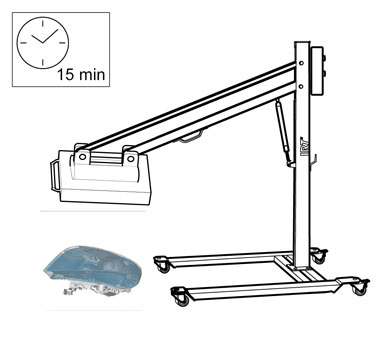

The drying time applies to varnish when the infrared (IR) drying technique is used.

Courtesy of VOLVO CARS CORPORATION

Install the headlamps, refer to: HEADLAMPS
