Location Of Components, Tail Lamp. [2016-2020]

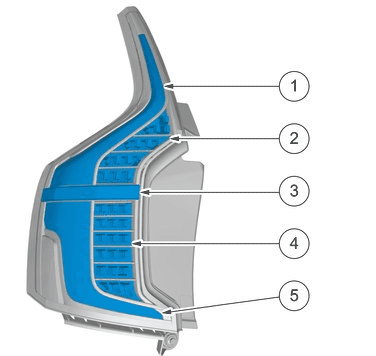

GLL1011116Courtesy of VOLVO CARS CORPORATION
  1. Parking lights
  2. brake light
  3. back-up light
  4. direction indicator
  5. Parking lights
