Auxiliary Telematics Module (ATM) [2020, B4204T23; B4204T27; B4204T28; B4204T39]: Removal

Deactivate the SIM card GPRS function in the RMS system.

Follow instructions regarding usage Mode, refer to: USAGE MODE

Remove glove compartment, refer to: GLOVE COMPARTMENT

Remove blower motor unit, front, refer to: BLOWER MOTOR UNIT, FRONT

Courtesy of VOLVO CARS CORPORATION

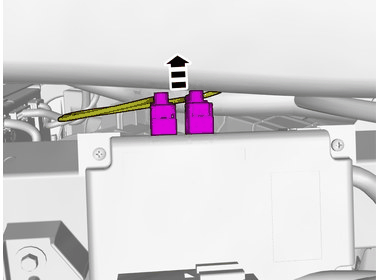

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

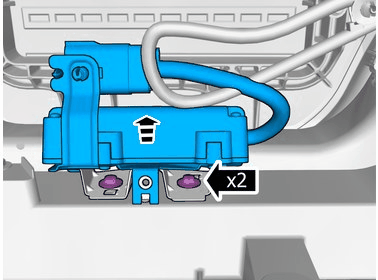

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

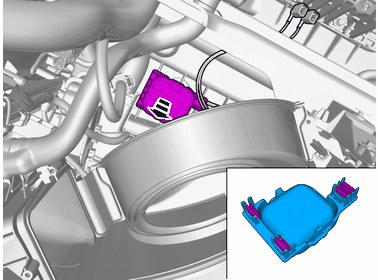

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

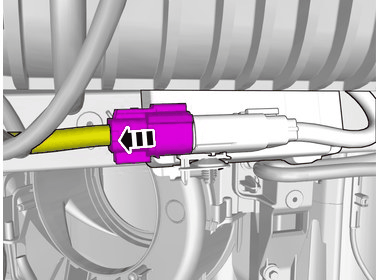

View from below

Remove the marked part.
