Parking Assistance Camera, Rear [2016-2017]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Remove the tailgate/trunk lid trim panel, refer to: TAILGATE/TRUNK LID PANEL

Courtesy of VOLVO CARS CORPORATION

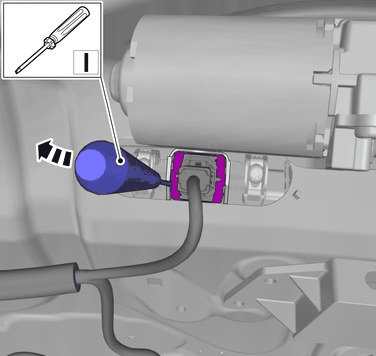

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

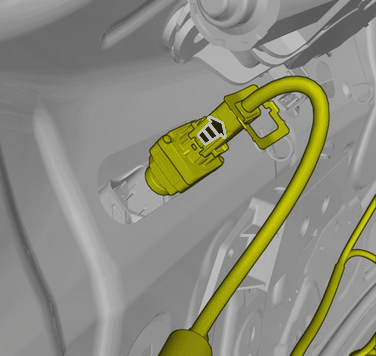

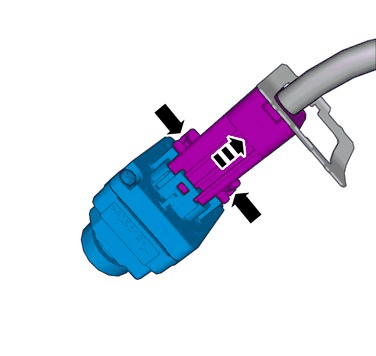

Disconnect the connector.
