Parking Assistance Camera, Front [2016-2020]: Removal

Courtesy of VOLVO CARS CORPORATION

NOTE:

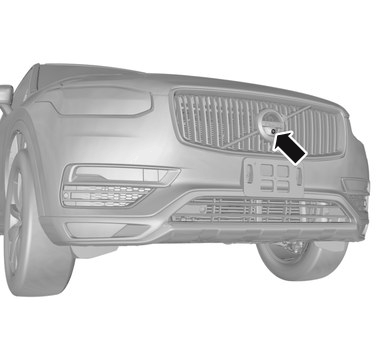

Orientation view

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Remove the radiator masking, refer to: RADIATOR GRILLE

Courtesy of VOLVO CARS CORPORATION

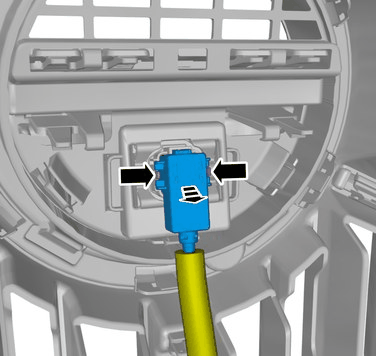

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

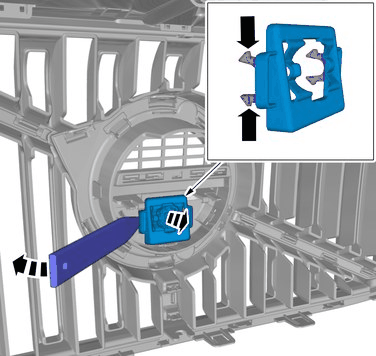

Loosen the clip.

Remove the marked part.
