BLUETOOTH Antenna [2016-2020]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Remove glove compartment, refer to: GLOVE COMPARTMENT

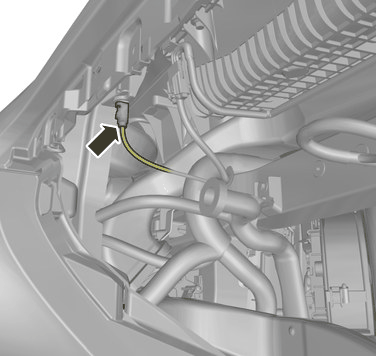

GLL1022852Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

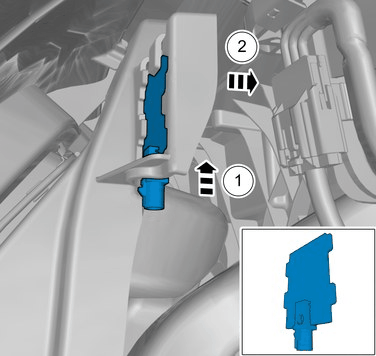

GLL1002561Courtesy of VOLVO CARS CORPORATION
NOTE:

The component can only be installed in 1 position.

Remove the marked part.
