Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

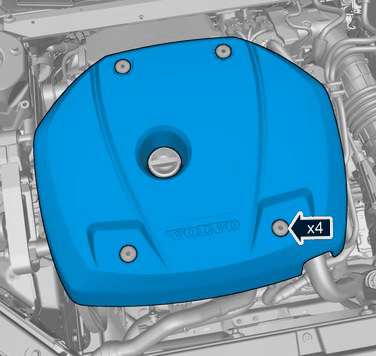

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Remove the upper torque rod, refer to: UPPER TORQUE ROD

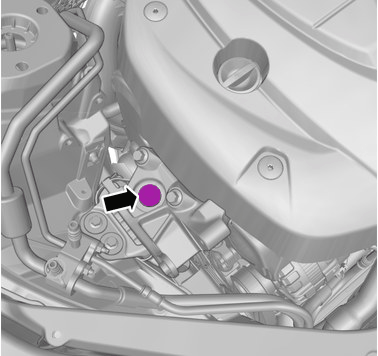

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: Engine mount bracket, to Engine pad, 110Nm

Remove Engine Rear Lower Support Insulator RH, refer to: ENGINE REAR LOWER SUPPORT INSULATOR RH

Courtesy of VOLVO CARS CORPORATION

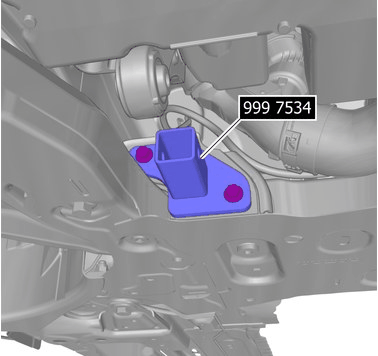

Refer to: Special Tool: 999 7534

Use: Screw M10 x 20 mm

Torque: M10, 50Nm

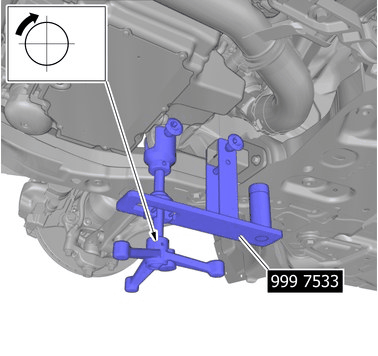

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 753

Remove the following items:

camshaft seal, refer to: CAMSHAFT SEAL
the fuel rail, refer to: FUEL RAIL
Oil trap, refer to: OIL TRAP

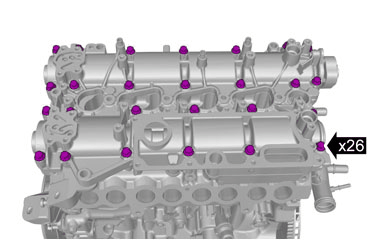

Courtesy of VOLVO CARS CORPORATION

Loosen each bolt 2 turns at a time until all bolts are removed.

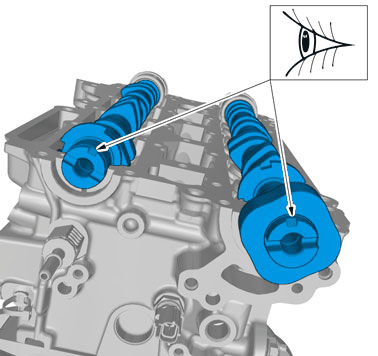

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the components.

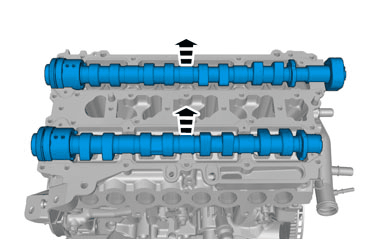

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the components.

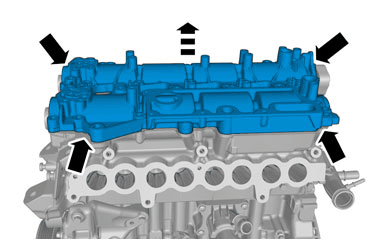

Remove the marked detail/details.

CLEANING

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the mating faces.

CAUTION:

Make sure that the oil galleries are clean and free of foreign material.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

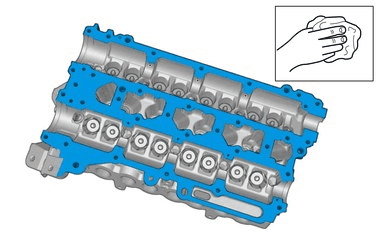

Use: Abrasive cloth, 9511024

Use: Isopropanol,

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the mating faces.

CAUTION:

Make sure that the oil galleries are clean and free of foreign material.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

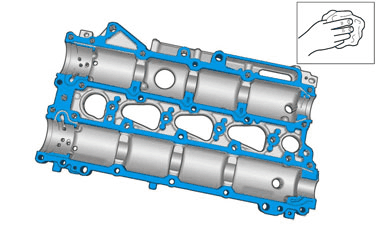

Use: Abrasive cloth, 9511024

Use: Isopropanol,

INSTALLATION

NOTE:

The following steps are only necessary when installing a new component.

Perform valve clearance, refer to: VALVE CLEARANCE

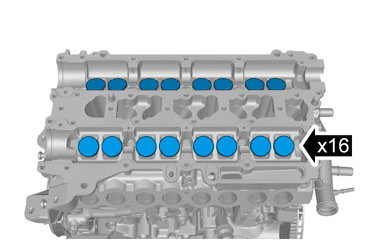

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

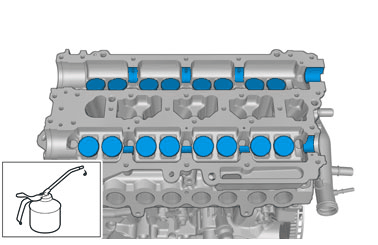

Use: Engine oil,

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

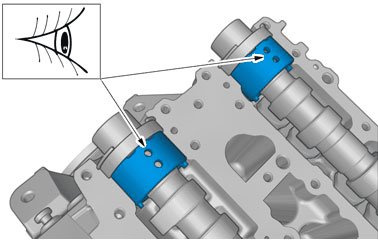

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

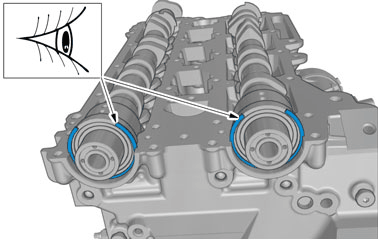

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The component must be installed within 5 minutes of applying the sealant.

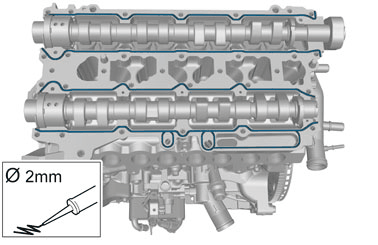

Use: Chemical gasket, 1161771 Use: Chemical gasket, China 30644521 Use: Chemical gasket, US/CAN 31316814

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that equal pressure is applied to the full length of the component.

NOTE:

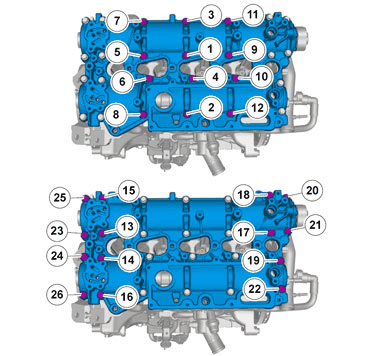

Make sure to follow the sequence indicated.

Install the marked component.

Install the screws.

Tighten each bolt 2 turns at a time.

Torque: M7, 17Nm

INSTALLATION

To install, reverse the removal procedure.
