Removal And Installation
REMOVAL

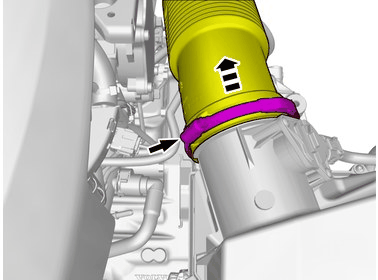

 Courtesy of VOLVO CARS CORPORATION
|
Loosen the hose clamp.
Undo the hose from the connection.

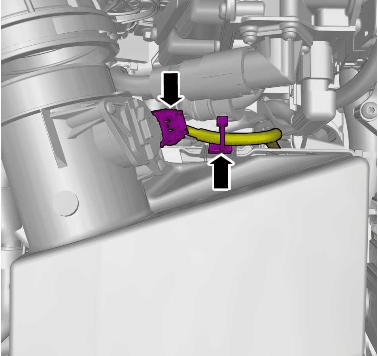

 Courtesy of VOLVO CARS CORPORATION
|
Disconnect the connector.
Loosen the clip.

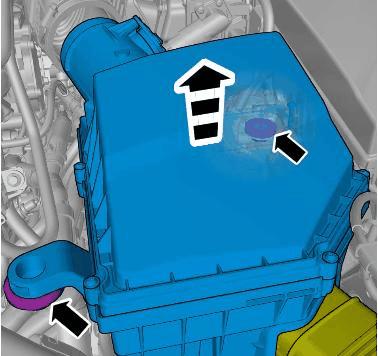

 Courtesy of VOLVO CARS CORPORATION
|
Remove the marked part.
TRANSFERRING COMPONENTS

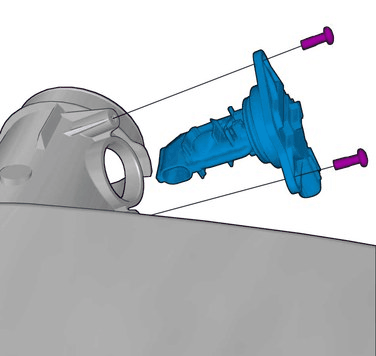

 Courtesy of VOLVO CARS CORPORATION
|
Remove the screws.
Remove the marked part.
INSTALLATION
To install, reverse the removal procedure.
