Actuator, Exhaust System [2020, B4204T23 | 2016-2018, 2020, B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

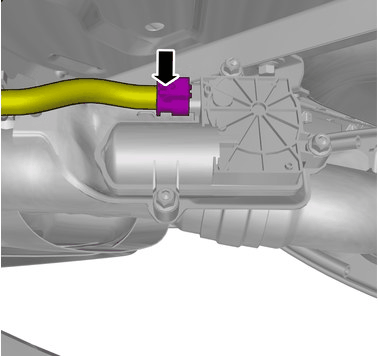

GLL1030072Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Fold marked part aside.

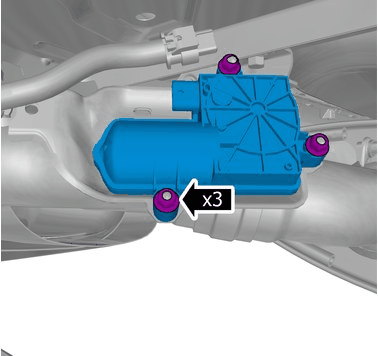

GLL1015517Courtesy of VOLVO CARS CORPORATION

Loosen the nuts.

Torque:  Actuator, to Exhaust system, 5Nm
