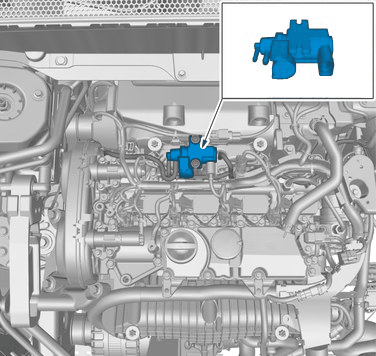

Actuator Turbo Pressure (Vacuum) [2016-2020, B4204T23 | 2016-2020, B4204T27 | 2017-2020, B4204T28 | 2020, B4204T39]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of VOLVO CARS CORPORATION
|
Loosen the screws.
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

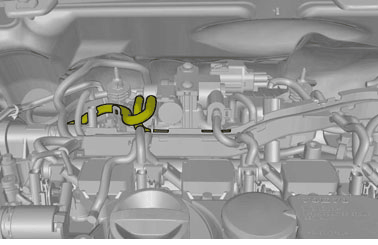

Undo the hoses from the connections.
 Courtesy of VOLVO CARS CORPORATION
|

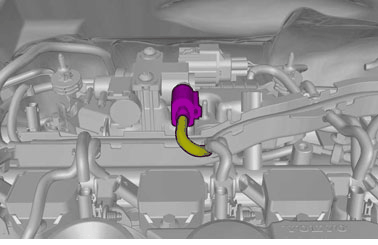

Disconnect the connector.
 Courtesy of VOLVO CARS CORPORATION
|

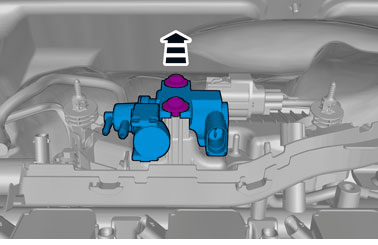

Loosen the screws.
Remove the marked part.
Torque:
M5, 5Nm
