Fuel Injector [2016-2020, B4204T23; B4204T27; B4204T28 | 2020, B4204T39]: Removal

Remove the fuel rail, refer to: FUEL RAIL

Courtesy of VOLVO CARS CORPORATION

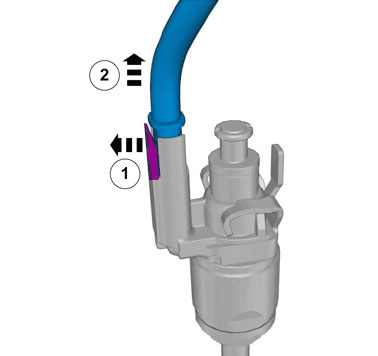

Disconnect the connector.

NOTE:

This step is not necessary when installing a new component.

Courtesy of VOLVO CARS CORPORATION

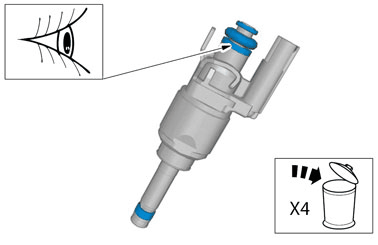

NOTE:

Note the position.

Remove the marked part.
