Outlet Hose, Turbocharger [2016-2020, B4204T23; B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Removal

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

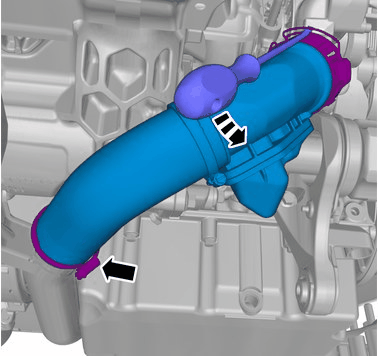

Loosen the hose clamp.

Release the lock.

Undo the hose from the connection.

Remove the marked part.
