Outlet Hose, Charge Air Cooler [2016-2020, B4204T23; B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove Front Underbody Air Deflector, refer to: FRONT UNDERBODY AIR DEFLECTOR

Courtesy of VOLVO CARS CORPORATION

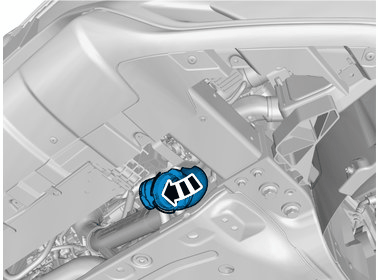

Remove the screws.

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

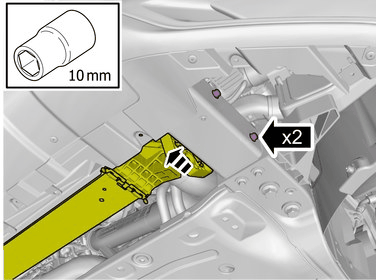

Remove the screws.

Fold marked part aside.

Torque: Charge air cooler console, to collision member, 20Nm

Courtesy of VOLVO CARS CORPORATION

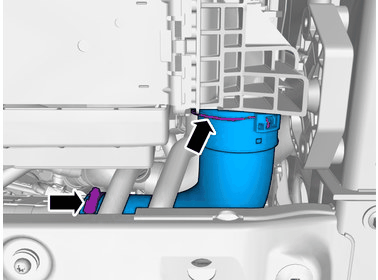

Loosen the hose clamp.

Release the lock.

Undo the hose from the connection.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

HINT: It may be necessary to twist or turn the component.
