Inlet Hose, Charge Air Cooler [2016-2020, B4204T23; B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove Front Underbody Air Deflector, refer to: FRONT UNDERBODY AIR DEFLECTOR

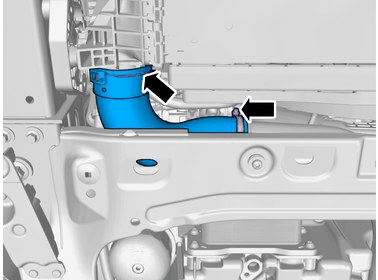

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Release the lock.

Undo the hose from the connection.

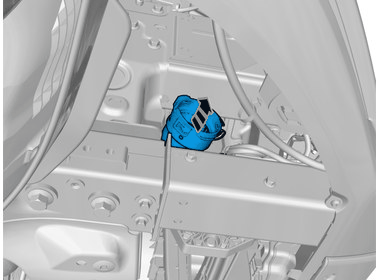

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Fold marked part aside.

Torque: M8, 24Nm

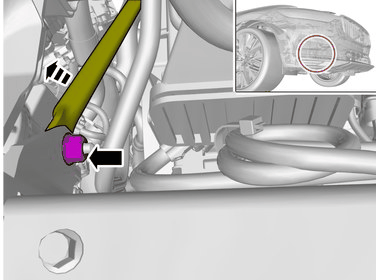

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

HINT: It may be necessary to twist or turn the component.
