Removal And Installation

REMOVAL

See information about lifting points body, refer to: JACKING POINTS BODY

Remove casing bumper front, refer to: COVER BUMPER FRONT

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

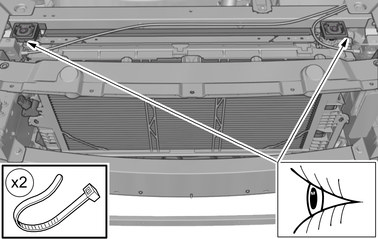

Use a cable tie

Courtesy of VOLVO CARS CORPORATION

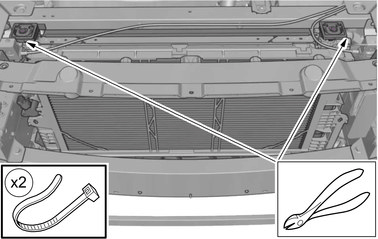

Tighten the cable tie.

Courtesy of VOLVO CARS CORPORATION

Tighten the cable tie.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Torque:  M5, 5Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Release the locks.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

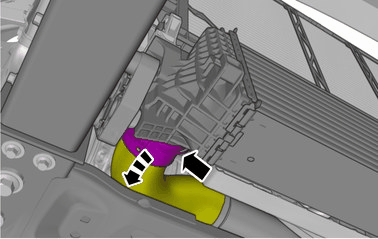

Release the lock.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

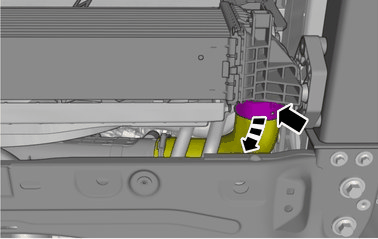

Release the lock.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

On both sides.

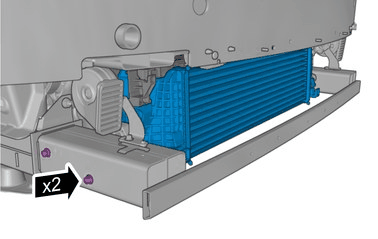

Remove the screws.

Torque:  Charge air cooler console, to collision member, 20Nm

Courtesy of VOLVO CARS CORPORATION

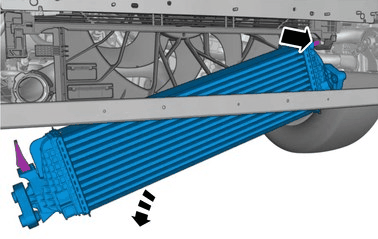

Release the lock.

Courtesy of VOLVO CARS CORPORATION

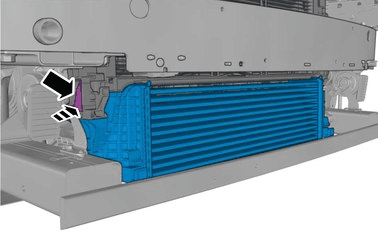

Release the catch.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

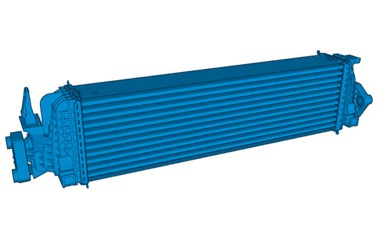

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

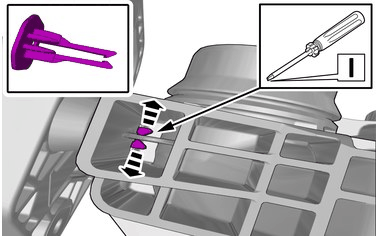

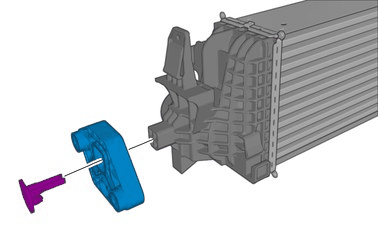

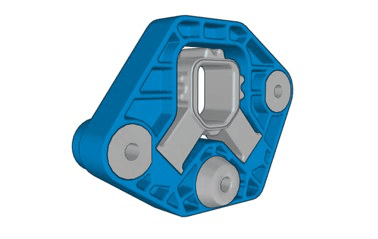

Loosen the clip.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Courtesy of VOLVO CARS CORPORATION

INSTALLATION

To install, reverse the removal procedure.

Courtesy of VOLVO CARS CORPORATION
