Cooling System - Draining, Charging And Bleeding [2016-2020, B4204T23; B4204T27 | 2016-2020, B4204T28 | 2020, B4204T39]: Filling

See information about water quality, refer to: WATER QUALITY

Fill the engine cooling system with Volvo Original Coolant.

CAUTION:

Only use the specified special tool.

CAUTION:

Make sure to carefully follow the instruction.

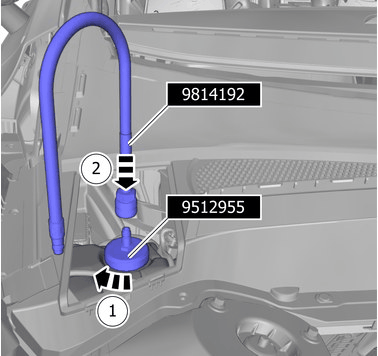

GLL1012804

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 951 2955
Refer to: Special Tool: 981 4192

GLL1020308

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Ensure that there is always enough liquid in the receptacle to prevent the suction hose from sucking air.

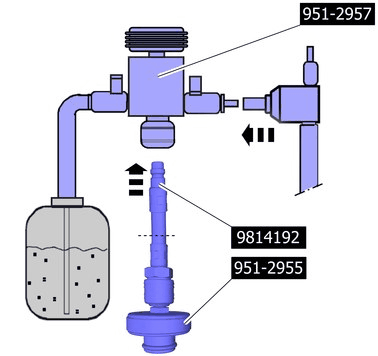

GLL1038301

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 951 2957

GLL1012485

Courtesy of VOLVO CARS CORPORATION

GLL1004046

Courtesy of VOLVO CARS CORPORATION

GLL1006029

Courtesy of VOLVO CARS CORPORATION

Open the valve.

GLL1037428

Courtesy of VOLVO CARS CORPORATION

Open the valve.
Close the valve.

GLL1007231

Courtesy of VOLVO CARS CORPORATION

Wait the specified time

GLL1005779

Courtesy of VOLVO CARS CORPORATION

Close the valve.

GLL1039468

Courtesy of VOLVO CARS CORPORATION

Undo the hoses from the connections.

GLL1018988

Courtesy of VOLVO CARS CORPORATION

Check the value.

GLL1035504

Courtesy of VOLVO CARS CORPORATION

Open the valve.

GLL1019147

Courtesy of VOLVO CARS CORPORATION

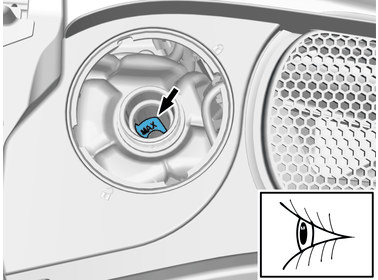

GLL1033580

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that fluid level is to the MAX mark.
