Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Remove front subframe, service position, refer to: FRONT SUBFRAME, SERVICE POSITION

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

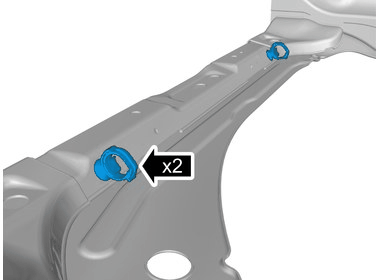

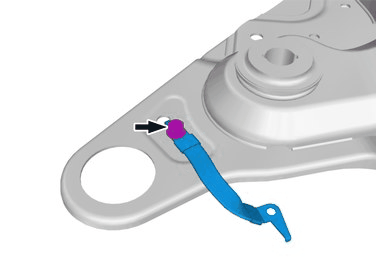

Remove the marked detail/details.

Torque: M6, 10Nm
Use hands only.
Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

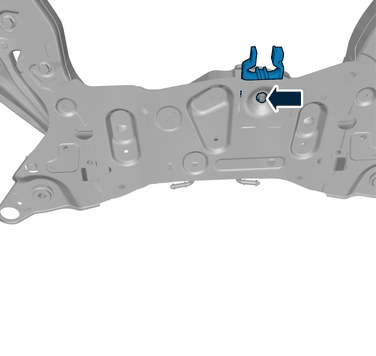

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Torque: M8, 24Nm
Torque:Lower arm lower front to subframe (rear mounting, screw),
- Stage 1: 140 Nm
- Stage 2: 60 °

Courtesy of VOLVO CARS CORPORATION

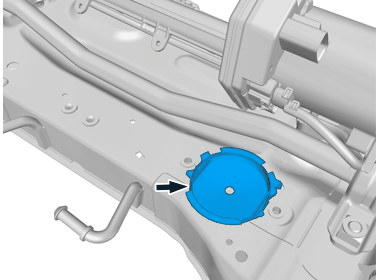

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Refer to Spare parts catalogue for information on correct component/ fastener.

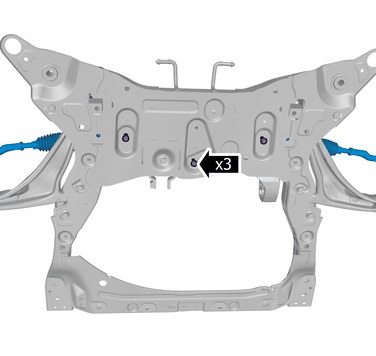

Loosen the screws.

Torque:Steering gear to subframe,

Stage 1: 45 Nm
Stage 2: 90 °

Courtesy of VOLVO CARS CORPORATION

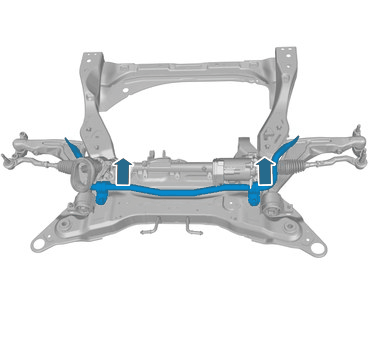

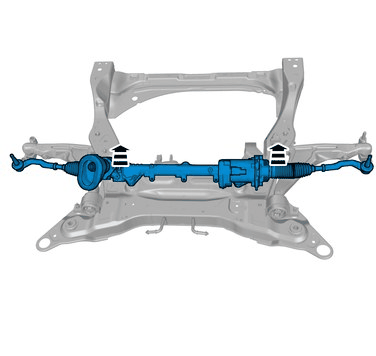

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

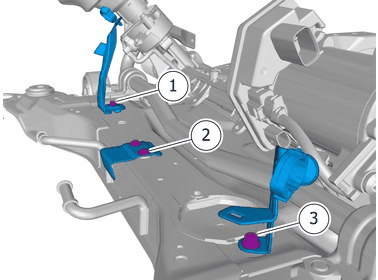

CAUTION:

Note the location of the component before removal.

Remove the screws.

Remove the marked part.

On both sides.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

On both sides.

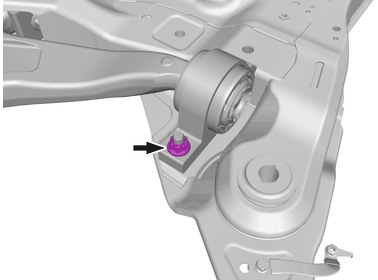

Loosen the nut.

Torque:Lower arm front to subframe (rear mounting, nut),

Stage 1: 90 Nm
Stage 2: 60 °

Courtesy of VOLVO CARS CORPORATION

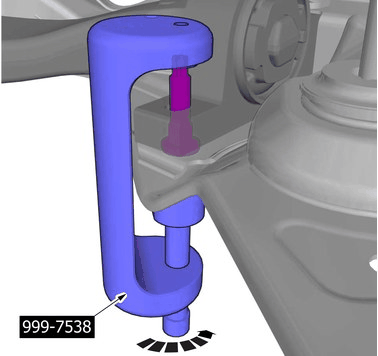

CAUTION:

Make sure that a new bolt is installed.

Refer to: Special Tool: 999 7538

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

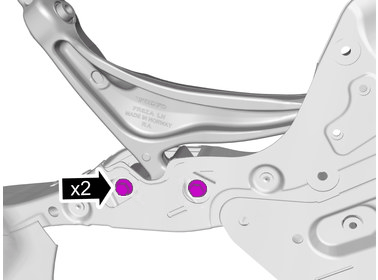

On both sides.

Remove the screws.

Torque:Lower arm front to subframe (front mounting),

Stage 1: 140 Nm
Stage 2: 90 °

Courtesy of VOLVO CARS CORPORATION

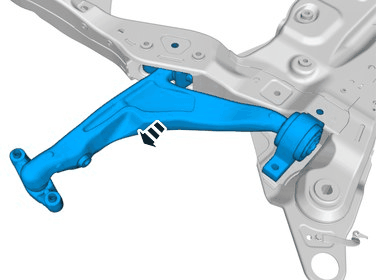

On both sides.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

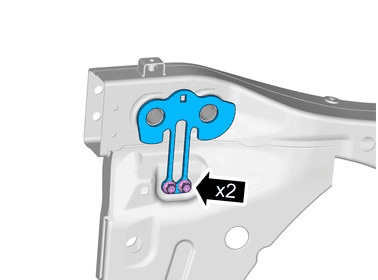

On both sides.

Remove the screw.

Remove the marked part.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

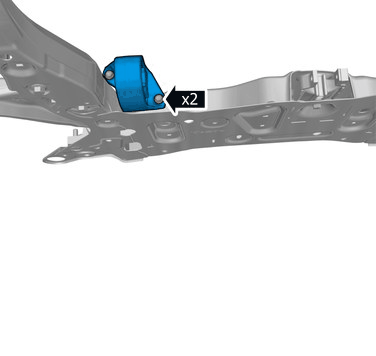

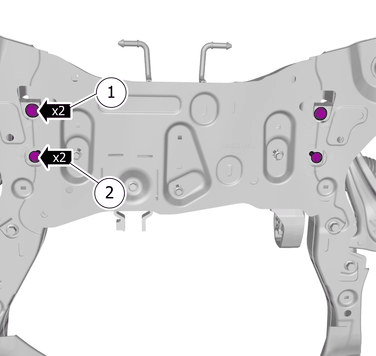

Loosen the screws.

Remove the marked part.

Torque: Lower torque rod rear left, to subframe, 110Nm

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Torque: Lower torque rod rear right, to subframe, 60Nm

INSTALLATION

To install, reverse the removal procedure.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Only use the specified special tool.

NOTE:

This step is only necessary when installing a new component.

On both sides.

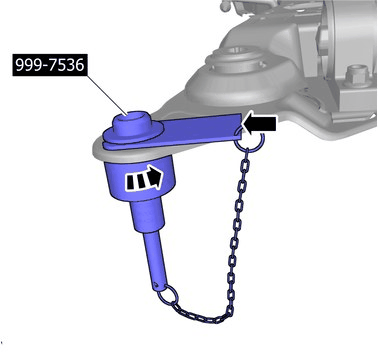

Refer to: Special Tool: 999 7536

Install front subframe, service position, refer to: FRONT SUBFRAME, SERVICE POSITION

Perform wheel angles check, refer to: WHEEL ANGLES, CHECK
