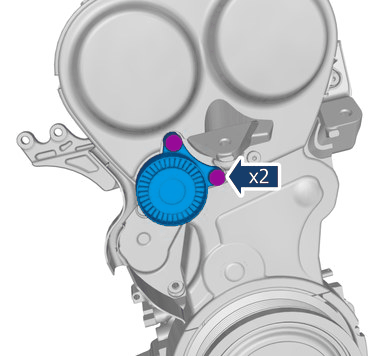

Engine Body, Exposing [2016, 2018, 2019, B4204T28, TG-81SC | 2020, B4204T28; B4204T39, TG-81SD]: Removal

Courtesy of VOLVO CARS CORPORATION

CAUTION:

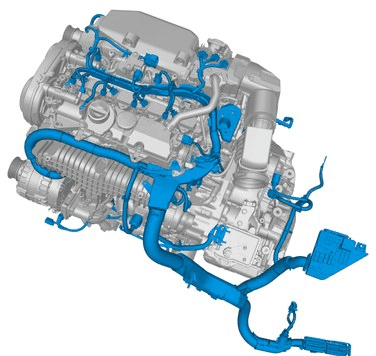

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

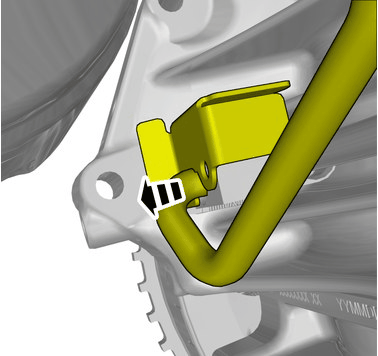

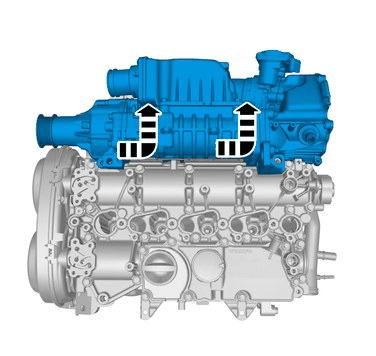

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

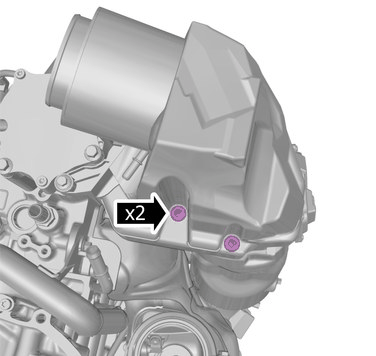

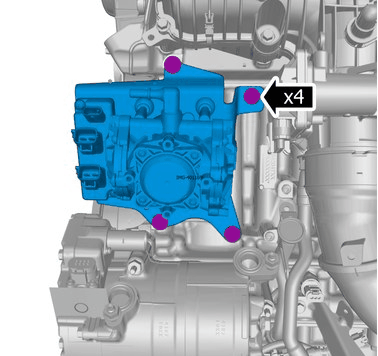

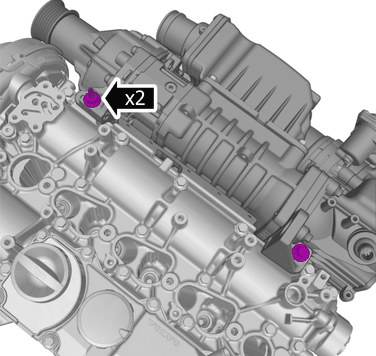

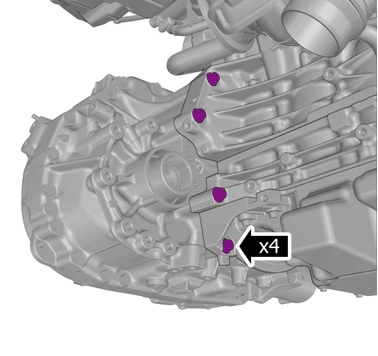

Remove the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

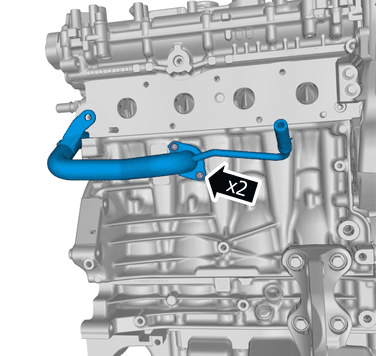

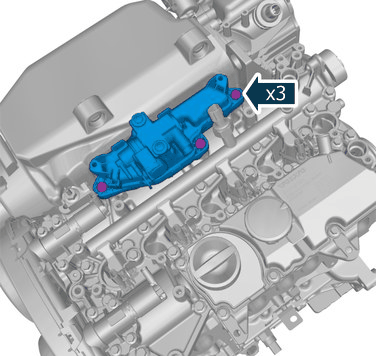

Remove the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

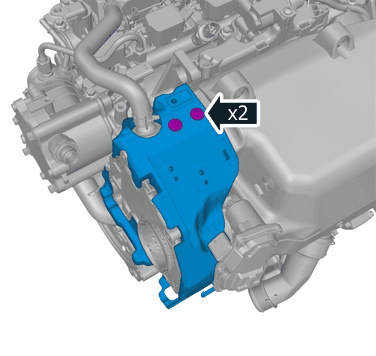

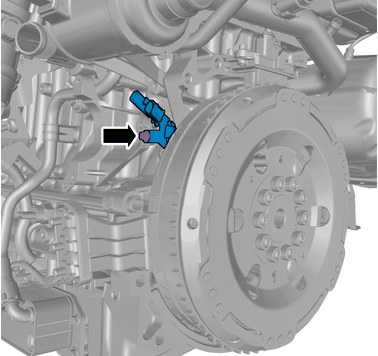

Remove the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

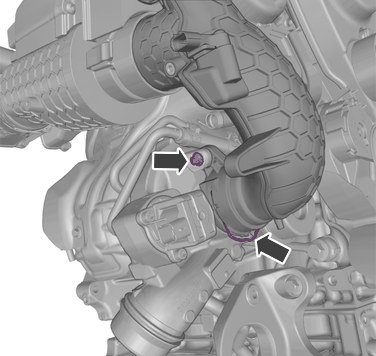

Make sure that no components catch.

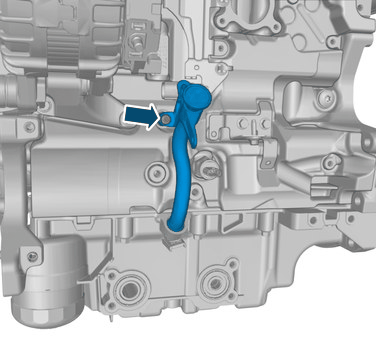

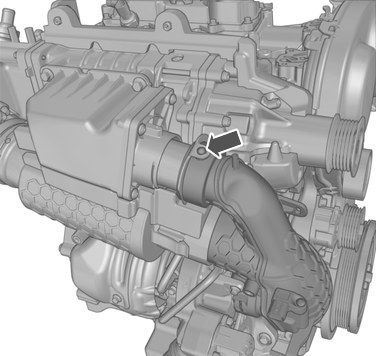

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

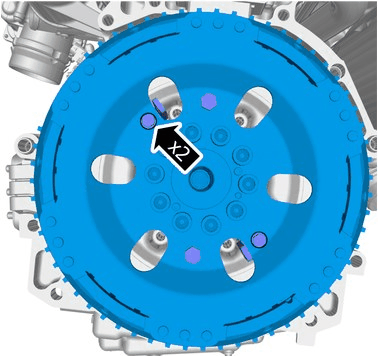

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

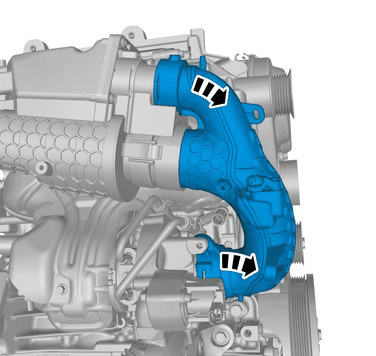

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

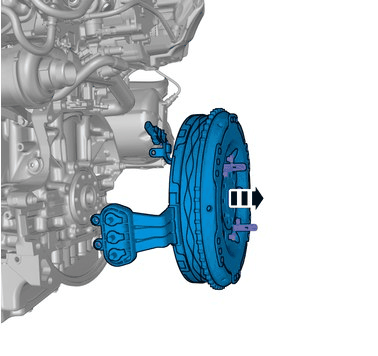

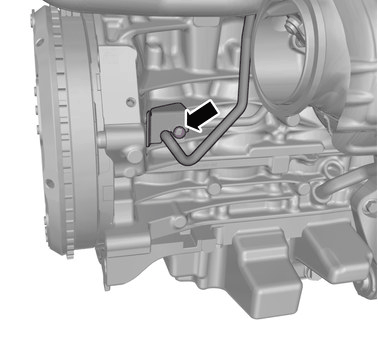

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

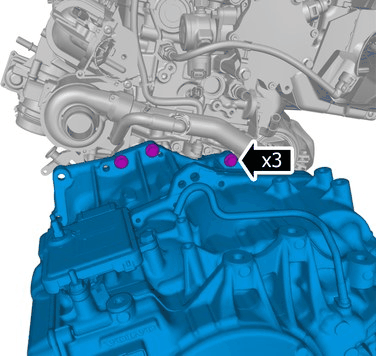

Remove the screws.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

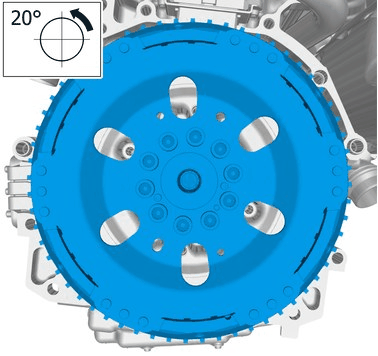

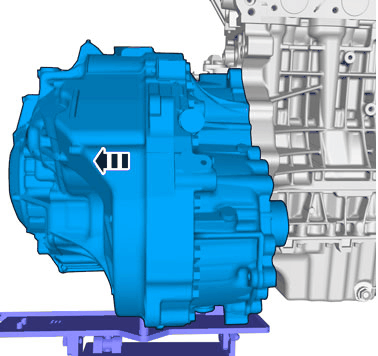

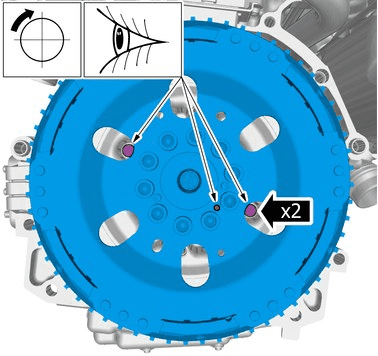

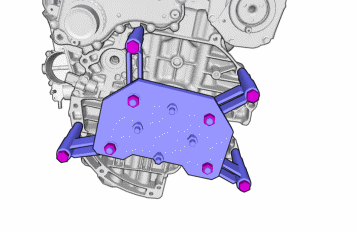

Turn the engine

Note the position.

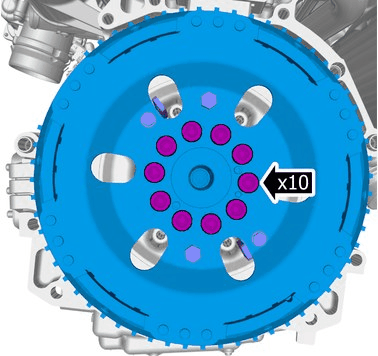

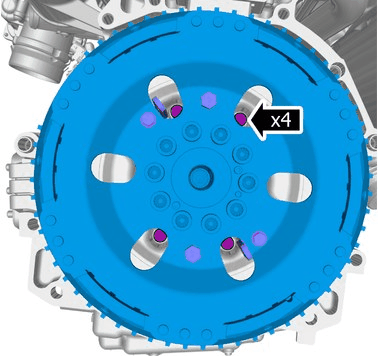

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

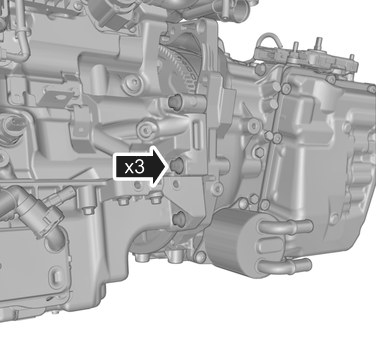

Turn the engine

Courtesy of VOLVO CARS CORPORATION

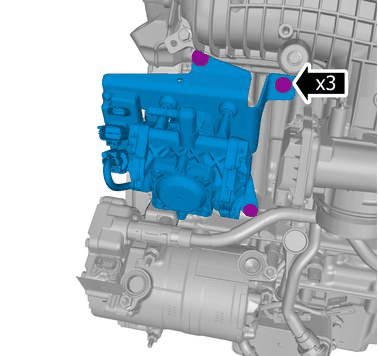

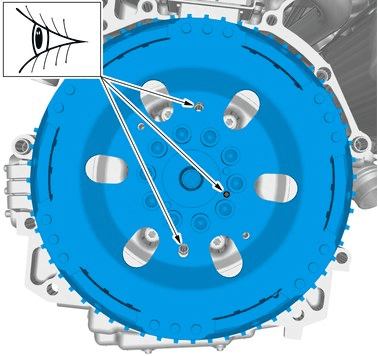

Note the position.

Courtesy of VOLVO CARS CORPORATION

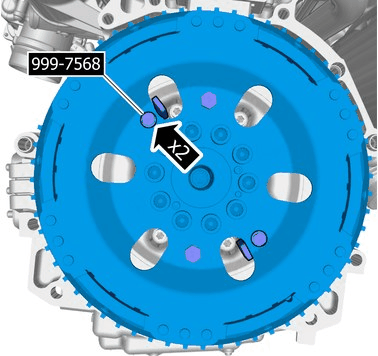

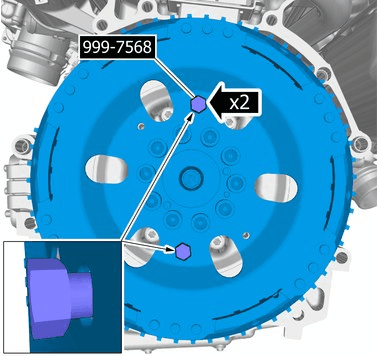

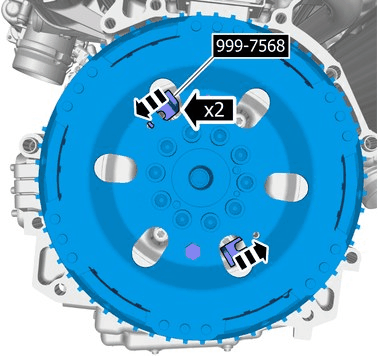

Refer to: Special Tool: 999 7568

Install the screws.

Torque: Installation screw ISG (M8), 18Nm

Courtesy of VOLVO CARS CORPORATION

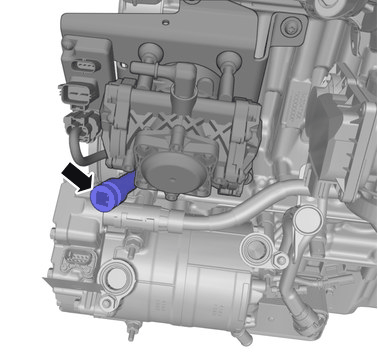

Refer to: Special Tool: 999 7568

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 7568

Install the screws.

Use hands only.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Torque: Installation screw ISG (M6), 8Nm

Courtesy of VOLVO CARS CORPORATION

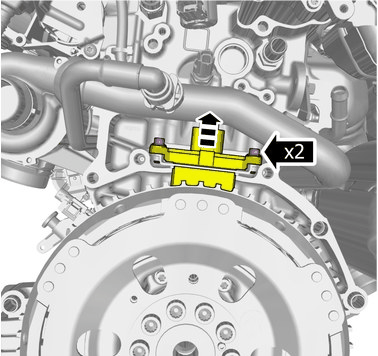

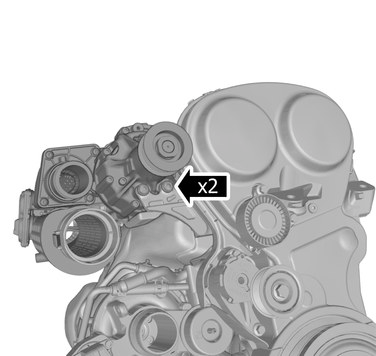

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The component must be removed by hand. Tools may not be used.

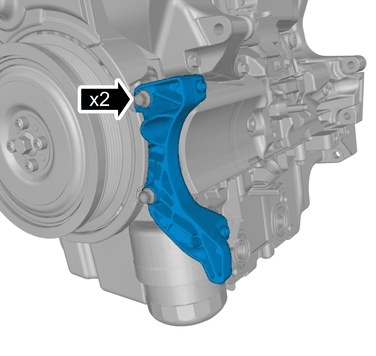

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 2520 , Special Tool: 999 5297 , and Special Tool: 998 9721

Courtesy of VOLVO CARS CORPORATION

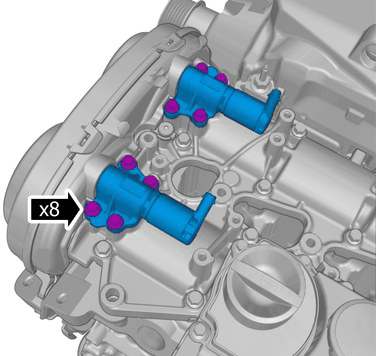

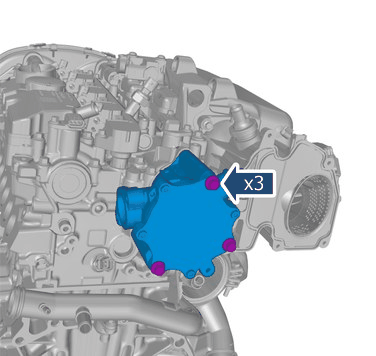

Remove the screws.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

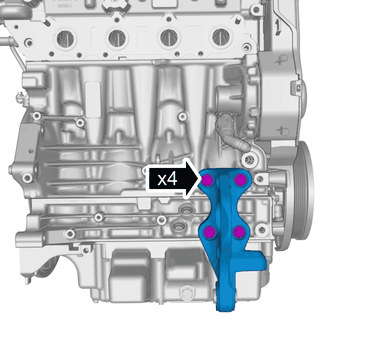

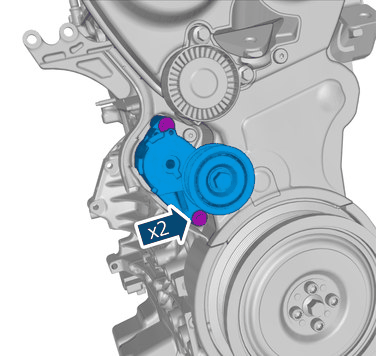

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

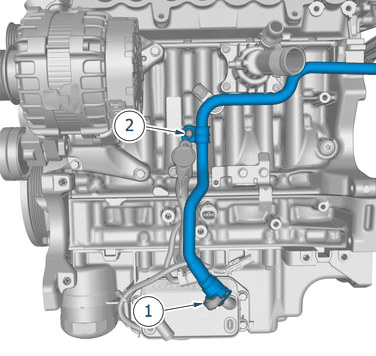

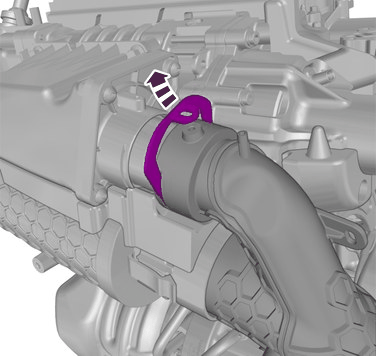

Release the lock.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

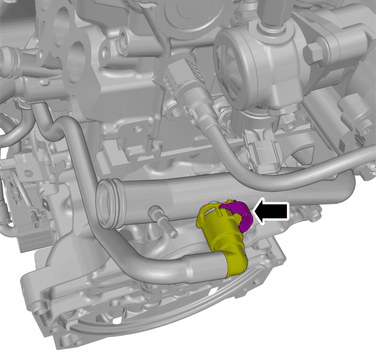

Release the lock.

Remove the screw.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

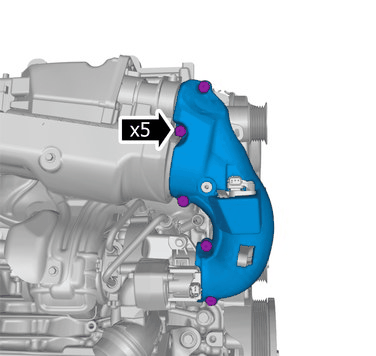

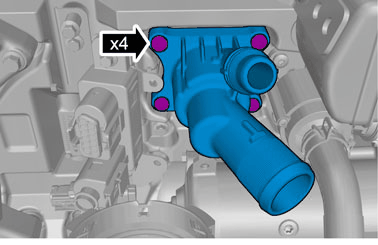

Remove the screws.

Torque: M7, 17Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

NOTE:

Use suitable paper to absorb any escaping fluid.

Courtesy of VOLVO CARS CORPORATION

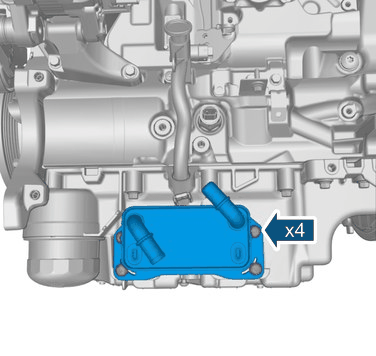

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the placing of the tool.

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

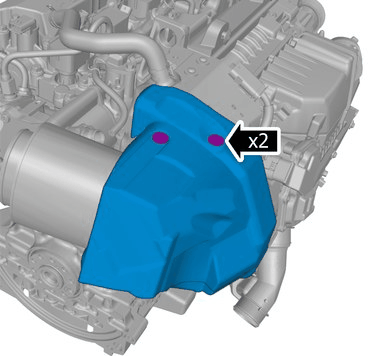

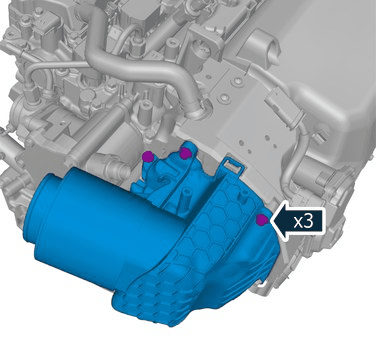

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

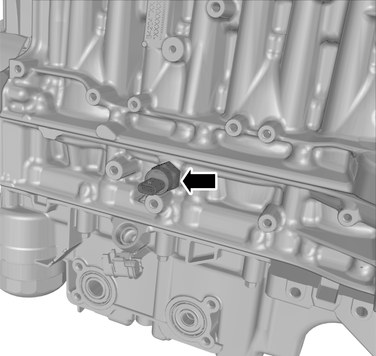

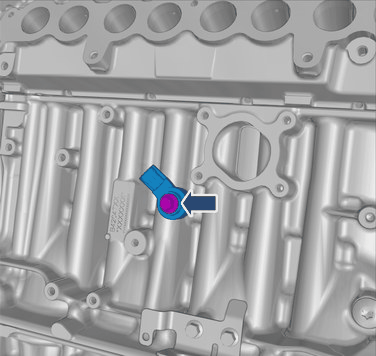

Remove the screw.

Torque: Knock sensor, 20Nm

Courtesy of VOLVO CARS CORPORATION

Torque: Oil pressure sensor, 15Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

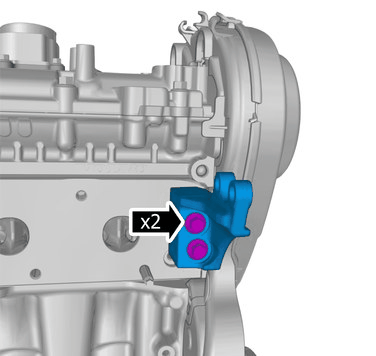

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

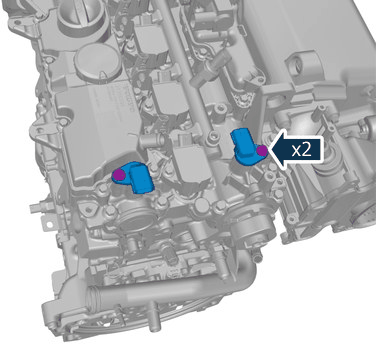

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

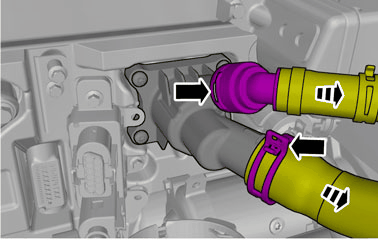

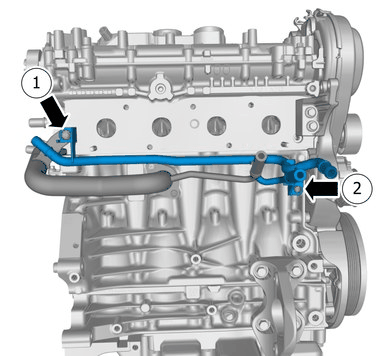

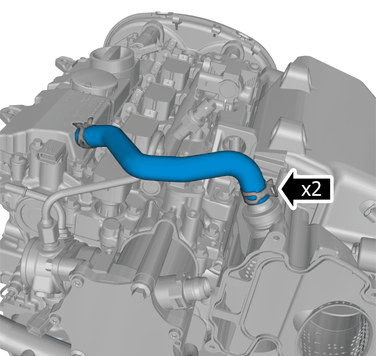

Loosen the hose clamps.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

NOTE:

Make sure that a new component is installed.

Torque:High-Pressure Fuel Line to Fuel Pump,

Stage 1: 12Nm
Stage 2: 25Nm

Courtesy of VOLVO CARS CORPORATION

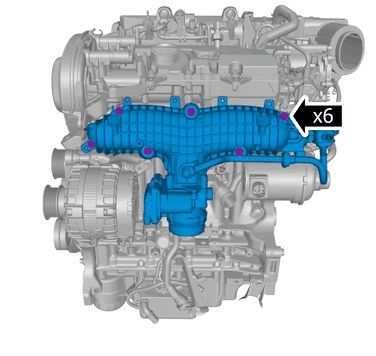

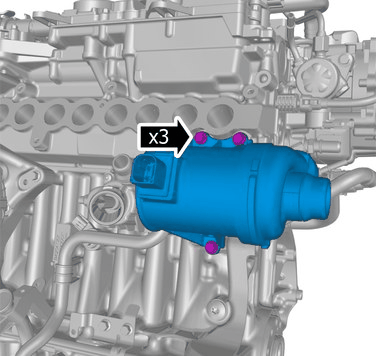

Remove the screws.

Torque: M8, 24Nm

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that no component falls off during removal.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

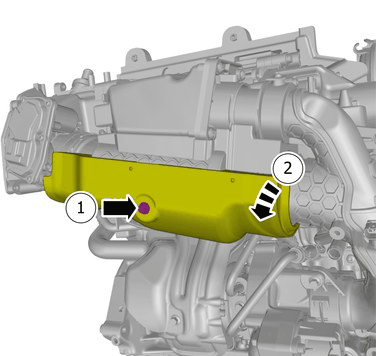

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

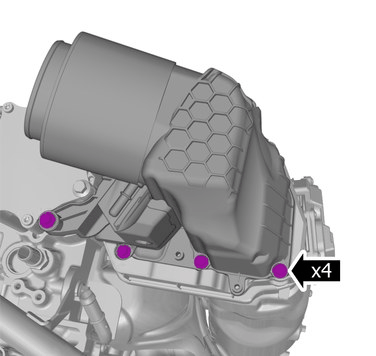

Remove the screws.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: Fuel rail, 20Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the screws.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

Fold the insulation aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

Remove the clip.

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

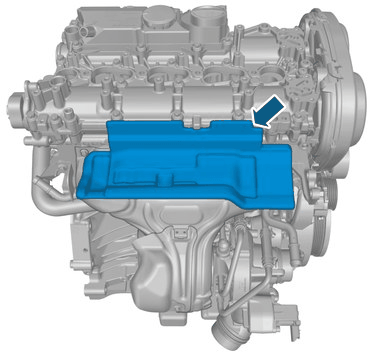

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

Torque: Oil pressure pipe to the turbocharger, 26Nm
Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

Torque:Exhaust manifold to cylinder head, nut,
- Stage 1: 20Nm
- Stage 2: 20Nm
,
Torque:Exhaust manifold to cylinder head, bolt,
- Stage 1: 20Nm
- Stage 2: 20Nm
,

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

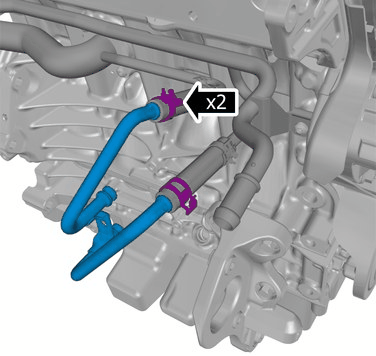

Loosen the hose clamps.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the following items:

Torque: M8, 24Nm
Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M10, 50Nm

Remove the marked part.
