Fibre Optic Cable Repair [2016-2020]: Installation

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

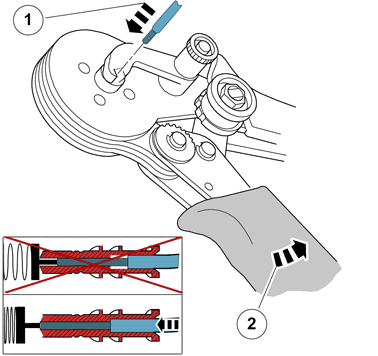

NOTE:

Insert the fiber optic cable into the tool so far that the spring of the tool is compressed.

Courtesy of VOLVO CARS CORPORATION

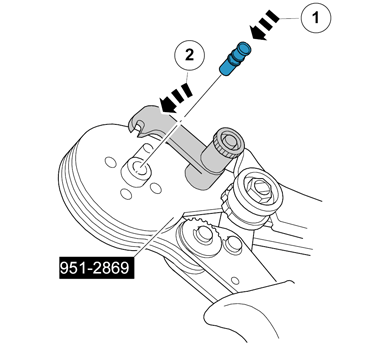

CAUTION:

Make sure that the component is positioned correctly.

Courtesy of VOLVO CARS CORPORATION

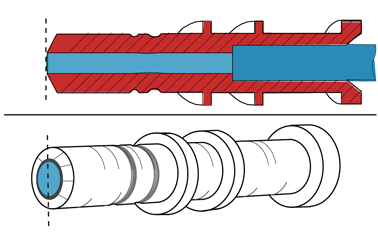

CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

NOTE:

Make sure that the optical connectors are clean and free of foreign material.

To install, reverse the removal procedure.
