Instrument Panel Lower [2020]: Removal

APPLIES TO THE DRIVER'S SIDE

GLL1008272

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1024220

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

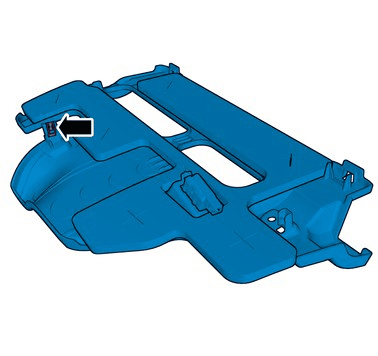

GLL1008646

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

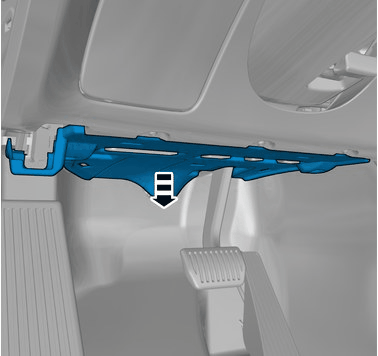

GLL1025769

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

GLL1019406

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

APPLIES TO THE PASSENGER SIDE

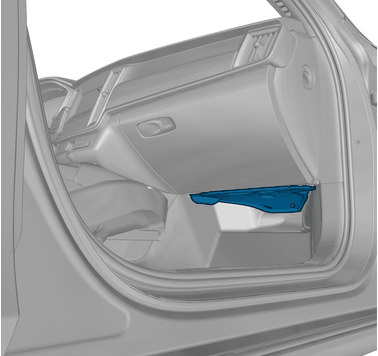

GLL1036190

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1022748

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

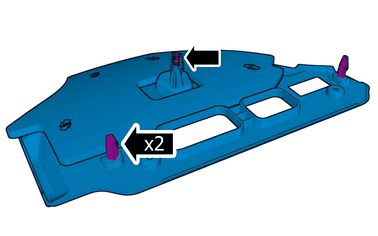

GLL1027500

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

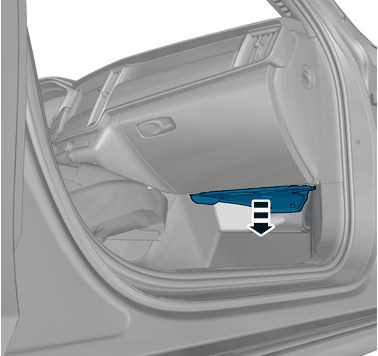

GLL1020250

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
