Support Battery [2016-2020, B4204T23; B4204T27]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

NOTE:

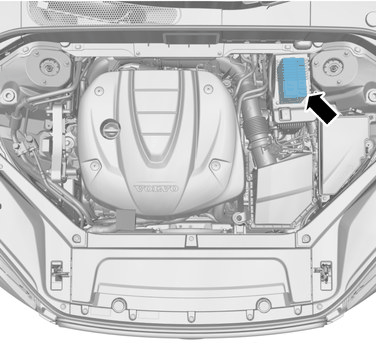

Orientation view

Courtesy of VOLVO CARS CORPORATION

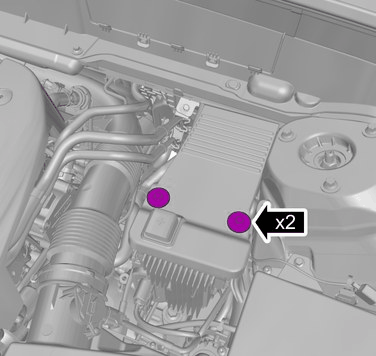

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

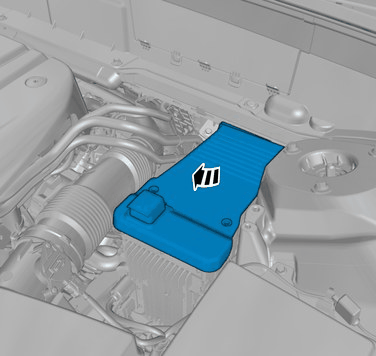

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

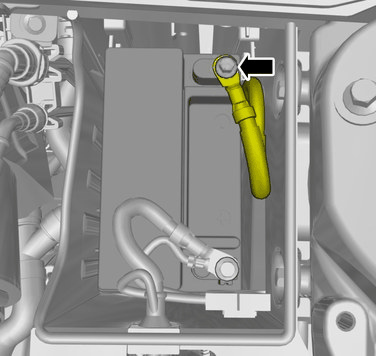

Remove the screw.

Torque: Battery cable terminal, to Extra battery, 6.5Nm

Courtesy of VOLVO CARS CORPORATION

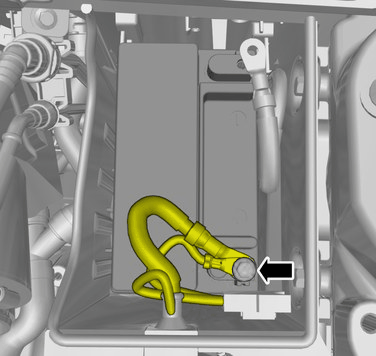

Remove the screw.

Torque: Battery cable terminal, to Extra battery, 6.5Nm

Courtesy of VOLVO CARS CORPORATION

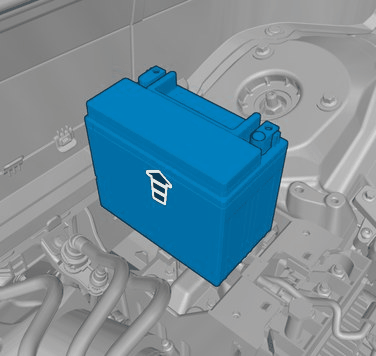

Remove the marked part.
