Removal And Installation

REMOVAL

Remove the propeller shaft, refer to: PROPELLER SHAFT

Remove drive axle rear, refer to: REAR DRIVE AXLE

Courtesy of VOLVO CARS CORPORATION

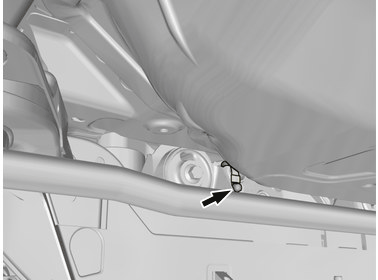

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

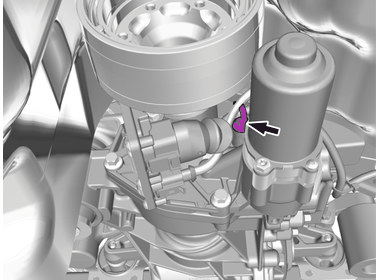

Disconnect the connector.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

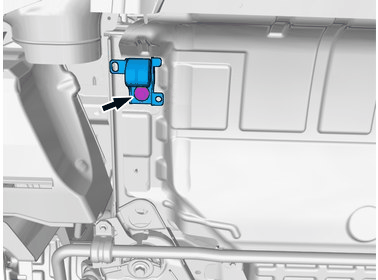

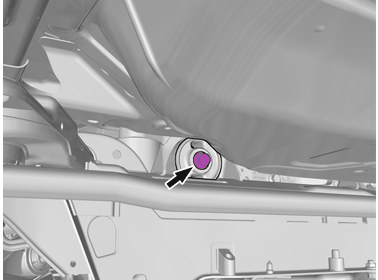

Remove the screw.

Remove the marked part.

Torque:  M12, 80Nm

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 5972

Courtesy of VOLVO CARS CORPORATION

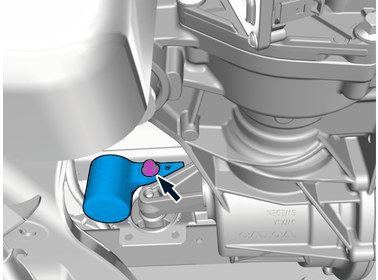

Remove the screw.

Remove the marked part.

On both sides.

Torque: Exhaust muffler bracket, to Body frame,

• Stage 1: 50 Nm
• Stage 2: 90 °

Courtesy of VOLVO CARS CORPORATION

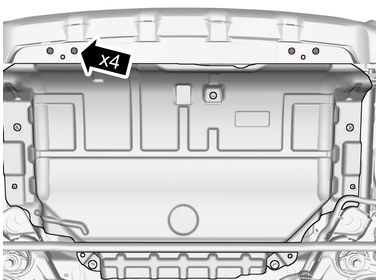

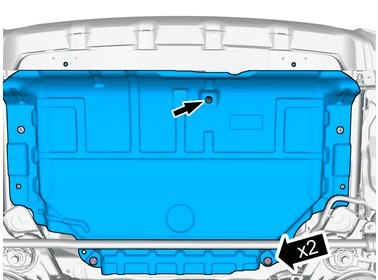

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Remove the screws.

Remove the marked part.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

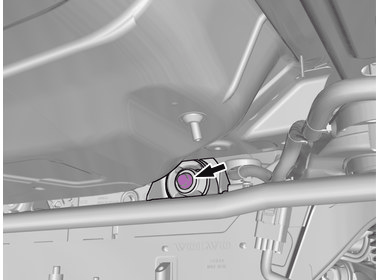

Remove the screw.

Torque:  M12, 80Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Fold marked part aside.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  M12, 80Nm

Courtesy of VOLVO CARS CORPORATION

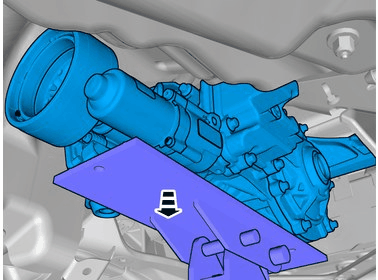

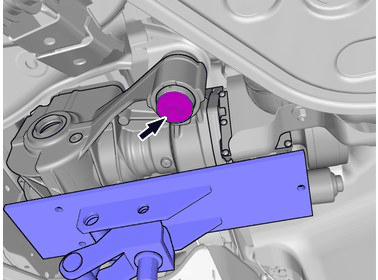

Remove the screw.

Refer to: Special Tool: 999 5972

Use:  Unit lift

Torque:  M12, 80Nm

Courtesy of VOLVO CARS CORPORATION

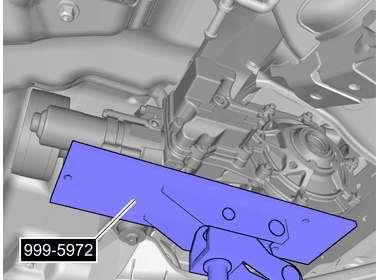

Refer to: Special Tool: 999 5972

Use:  Unit lift

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

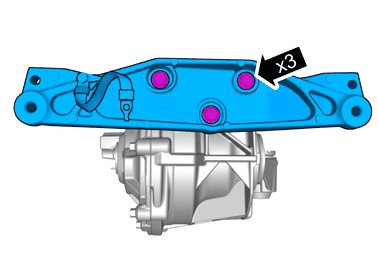

Remove the screws.

Remove the marked part.

The appearance of the part can vary depending on market.

Torque:  Bracket to final drive, 65Nm

INSTALLATION

To install, reverse the removal procedure.

Perform final drive oil level, check, refer to: DIFFERENTIAL FLUID LEVEL CHECK

Perform Active On Demand Coupling fluid level, check, refer to: ACTIVE ON DEMAND COUPLING FLUID LEVEL CHECK
