Removal And Installation

REMOVAL

Remove the propeller shaft, refer to: PROPELLER SHAFT

Remove drive axle rear, refer to: REAR DRIVE AXLE

Courtesy of VOLVO CARS CORPORATION

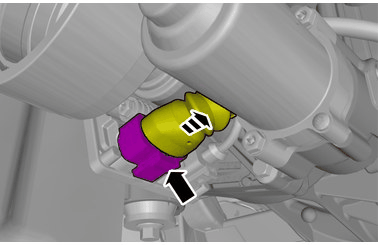

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

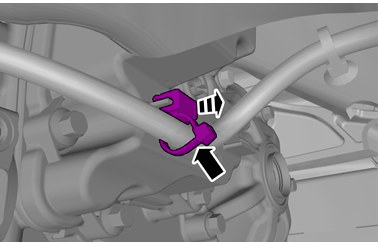

Loosen the clip.

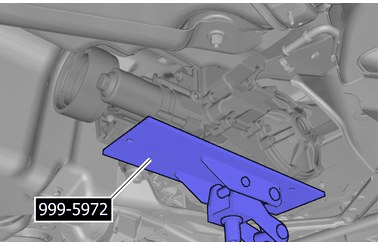

Courtesy of VOLVO CARS CORPORATION

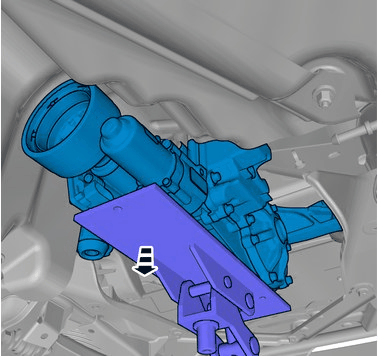

Use:  Unit lift

Refer to: Special Tool: 999 5972

Courtesy of VOLVO CARS CORPORATION

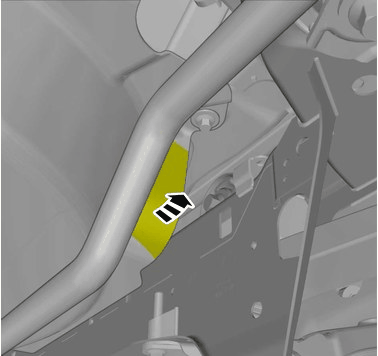

Fold marked part aside.

On both sides.

Courtesy of VOLVO CARS CORPORATION

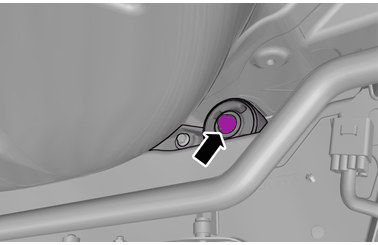

Remove the screw.

Torque:  M12, 80Nm

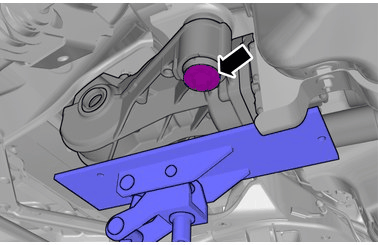

Courtesy of VOLVO CARS CORPORATION

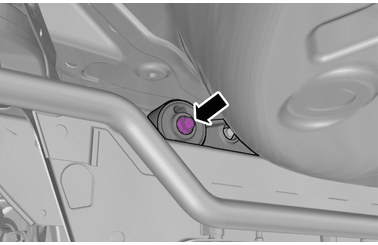

Remove the screw.

Torque:  M12, 80Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  M12, 80Nm

Use:  Unit lift

Refer to: Special Tool: 999 5972

Courtesy of VOLVO CARS CORPORATION

Use:  Unit lift

Refer to: Special Tool: 999 5972

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

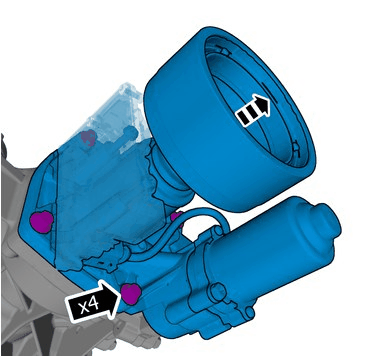

Remove the screws.

Remove the marked part.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

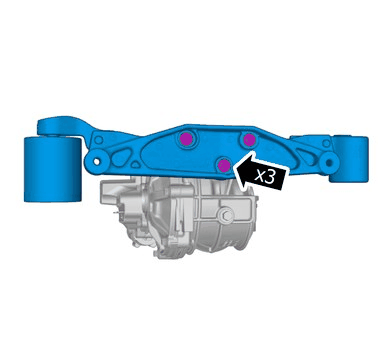

Remove the screws.

Remove the marked part.

The appearance of the part can vary depending on market.

Torque:  M10, 50Nm

INSTALLATION

To install, reverse the removal procedure.

Perform final drive oil level, check, refer to: DIFFERENTIAL FLUID LEVEL CHECK

Perform Active On Demand Coupling fluid level, check, refer to: ACTIVE ON DEMAND COUPLING FLUID LEVEL CHECK
