SUBFRAME/Final Drive Bushing [2016-2020, B4204T23; B4204T27, TG-81SC AWD]: Installation
NOTE:

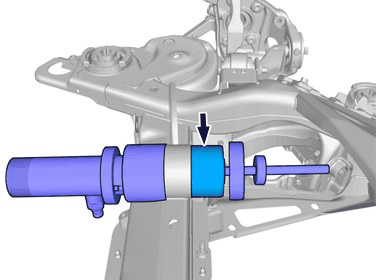

Make sure that this component is installed to the noted removal position.
On both sides.

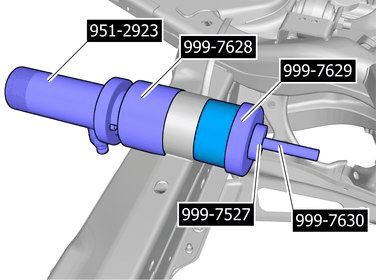

Refer to: Special Tool: 951 2923 , Special Tool: 999 7628 , Special Tool: 999 7629 , Special Tool: 999 7630 , and Special Tool: 999 7527
On both sides.

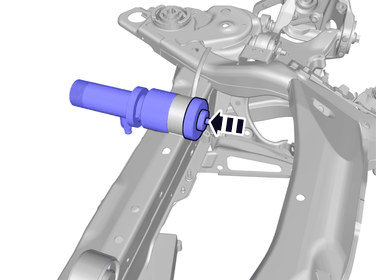

Press the marked component.
On both sides.
NOTE:

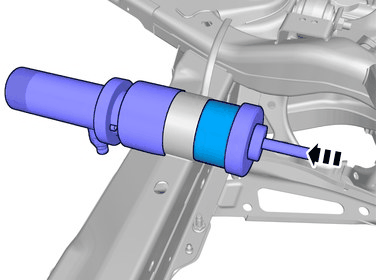

Make sure that the component reaches its end position.
On both sides.
Install differential, refer to: FINAL DRIVE
