Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

See information about work with car lift, refer to: WORKING WITH A CAR LIFT

VEHICLES WITH AIR SUSPENSION

Empty air springs according to: Diagnostics/ Components/ ECU / SUM / Diagnostic Sequences / Deflating and filling air springs and reservoir

On both sides.

ALL VEHICLES

Remove rear shock absorber, refer to: REAR SHOCK ABSORBER

Courtesy of VOLVO CARS CORPORATION

Remove the fasteners.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

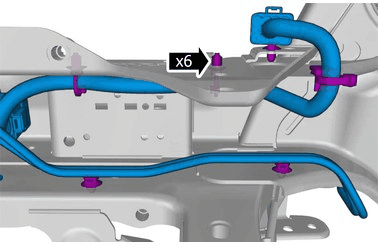

Disconnect the connectors.

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component is suspended in a proper way.

Remove the screws.

Torque: Slide rail rear brake caliper, 28Nm

Repeat the steps when removing on opposite side.

Courtesy of VOLVO CARS CORPORATION

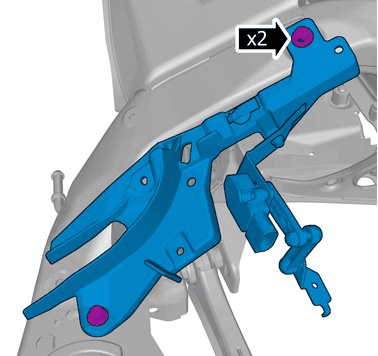

Remove the fasteners.

Remove the marked part.

On both sides.

Courtesy of VOLVO CARS CORPORATION

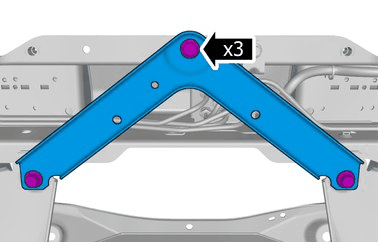

Remove the screws.

Remove the marked part.

Torque: Tunnel bracket, rear, to Body, 45Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Remove the nuts.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

This step requires the aid of another technician.

Remove the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Disconnect the connectors.

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The screws may be difficult to access.

Remove the screws.

Torque: M5, 5Nm

Disconnect the connectors.

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

VEHICLES WITH FUEL FIRED BOOSTER HEATER

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Remove the screw.

Torque: M6, 10Nm

VEHICLES WITH AIR SUSPENSION

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

Undo the hoses from the connections.

Torque: Air hose connector, to Connector with metal thread, 5Nm

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

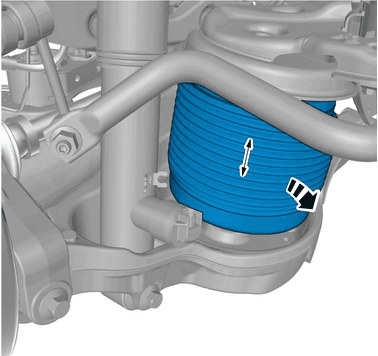

Undo the hose from the connection.

Torque: Air hose connector, to Connector with plastic threads, 3Nm

Courtesy of VOLVO CARS CORPORATION

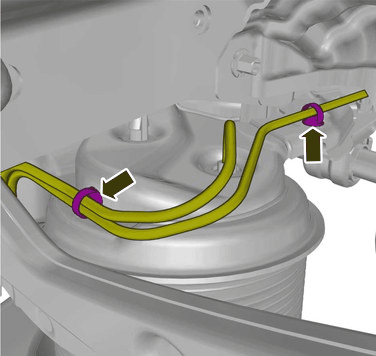

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

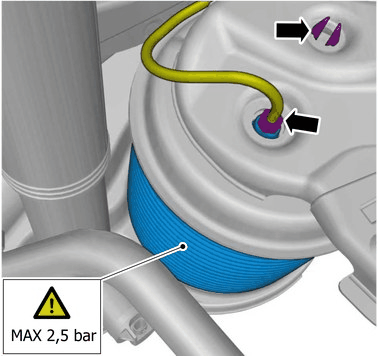

Undo the hose from the connection.

Torque: Air hose connector, to Connector with plastic threads, 3Nm

Depress the locking device.

On both sides.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

On both sides.

Courtesy of VOLVO CARS CORPORATION

Remove the fasteners.

On both sides.

Torque: Rear stabilizer bar link, to Wheel knuckle, 80Nm
Torque: Rear stabilizer bar link to stabilizer bar, 80Nm

Remove the marked part.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that a new nut is installed.

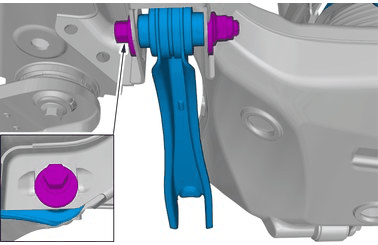

Remove the nut.

Torque:Upper arm rear to subframe,

Stage 1: 50Nm
Stage 2: 120 °

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that a new bolt is installed.

NOTE:

Only tighten the nuts and bolts when the suspension is in the normal drive position.

Remove the screw.

Refer to: Special Tool: 999 7538

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Place the component on a suitable underlay or support.

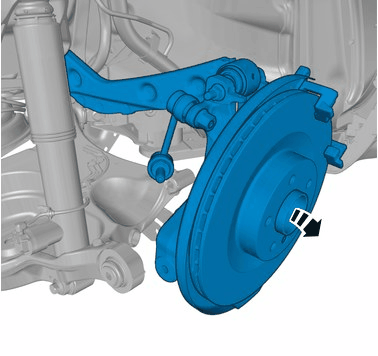

Remove the marked detail/details.

On both sides.

Repeat the steps when removing on opposite side.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position.

Remove the screw.

Remove the marked part.

Torque: Tie rod to subframe, 90Nm

On both sides.

VEHICLES WITHOUT AIR SUSPENSION

Remove leafspring, refer to: LEAFSPRING

ALL VEHICLES

Remove control arm, refer to: REAR LOWER ARM

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 951 2951

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that new bolts are installed.

Remove the following items:

Torque:Subframe stabilizer bracket, to Body,
- Stage 1: 50Nm
- Stage 2: 90 °
Torque:Subframe rear to body,
- Stage 1: 140Nm
- Stage 2: 180 °

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that new bolts are installed.

NOTE:

Make sure that no components catch.

Remove the screws.

Torque:Subframe rear to body,

Stage 1: 140Nm
Stage 2: 180 °

Lower to suitable height.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

On both sides.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that new bolts are installed.

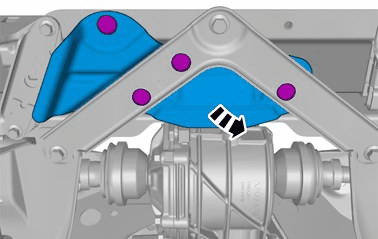

Remove the screws.

Remove the marked part.

Torque:Reinforcement plate, to Rear subframe,

Stage 1: 50Nm
Stage 2: 125 °

VEHICLES WITH AIR SUSPENSION

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

On both sides.

Courtesy of VOLVO CARS CORPORATION

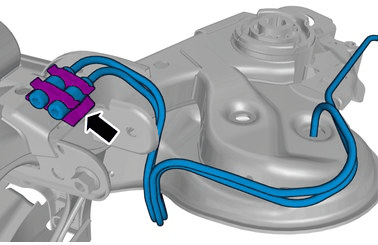

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

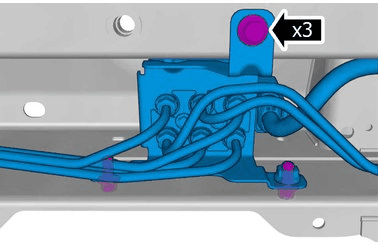

Remove the screws.

Torque: M8, 24Nm

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.

SECURING

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 7536

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the nuts and bolts when the suspension is in the normal drive position.

Install upper control arm, refer to: REAR UPPER ARM

VEHICLES WITH AIR SUSPENSION

Fill air springs according to: Diagnostics/ Components/ ECU / SUM / Diagnostic Sequences / Deflating and filling air springs and reservoir

On both sides.

CAUTION:

Make sure that the air springs are inflated before lowering the vehicle.

ALL VEHICLES

Follow the instructions regarding wheel angles, refer to: WHEEL ANGLES
