ERAD Breather [2016-2019, B4204T28, TG-81SC | 2020, B4204T28; B4204T39, TG-81SD]: Installation

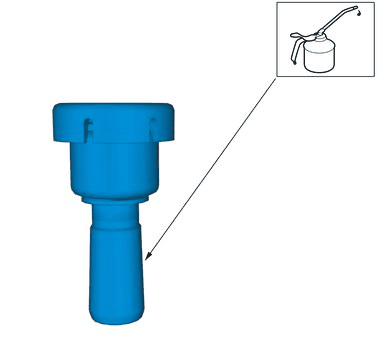

GLL1015787Courtesy of VOLVO CARS CORPORATION

System lubricant type

Follow the instructions regarding transmission lubricant, refer to: LUBRICANT TRANSMISSION

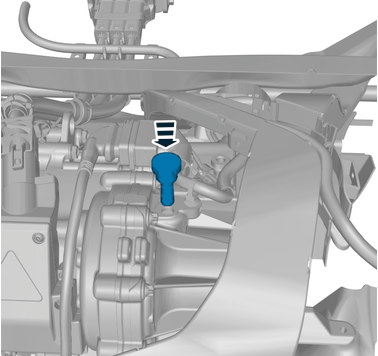

GLL1041420Courtesy of VOLVO CARS CORPORATION

Use hands only.

To install, reverse the removal procedure.
