Active On-Demand Coupling Seal [2020, B4204T23, TG-81SC AWD | 2020, B4204T27, TG-81SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the propeller shaft, refer to: PROPELLER SHAFT

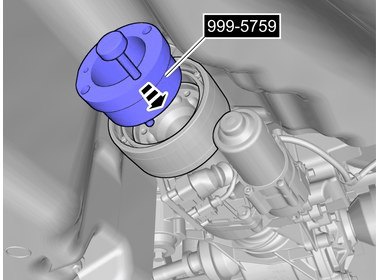

Refer to: Special Tool: 999 5759
WARNING:
Make sure that a new nut is installed.

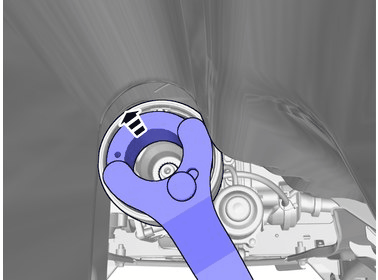

Remove the nut.

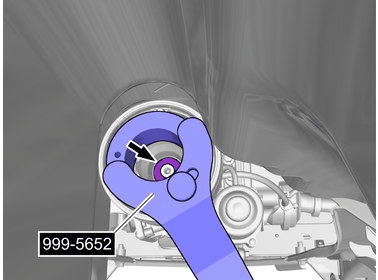

Refer to: Special Tool: 999 5652
Torque: Pinion nut for clutch AOC, 150Nm
Remove the tool.
CAUTION:

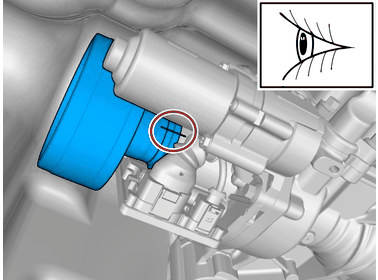

Note the position of the component before removal.
WARNING:
Be prepared to collect escaping fluid.
Remove the marked part.

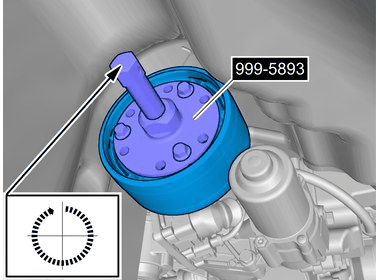

Refer to: Special Tool: 999 5893
WARNING:
Be prepared to collect escaping fluid.
Remove the marked part.

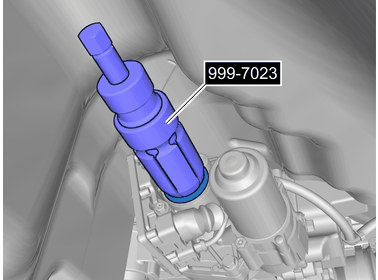

Refer to: Special Tool: 999 7023
