Active On-Demand Coupling Seal [2016-2019, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the propeller shaft, refer to: PROPELLER SHAFT

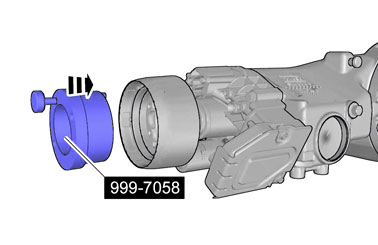

GLL1007682

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 7058

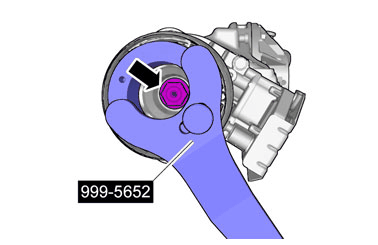

GLL173116

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Refer to: Special Tool: 999 5652

Torque: Pinion nut for clutch AOC, 150Nm

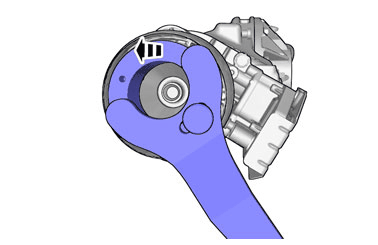

GLL173115

Courtesy of VOLVO CARS CORPORATION

Remove the tool.

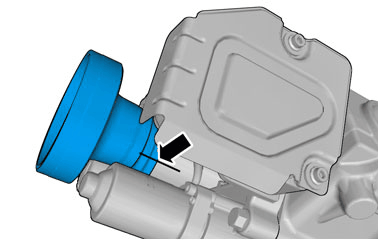

GLL173147

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the position of the component before removal.

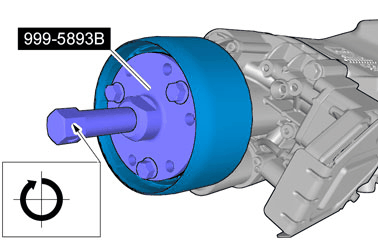

GLL173146

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

Remove the marked part.

Refer to: Special Tool: 999 5893

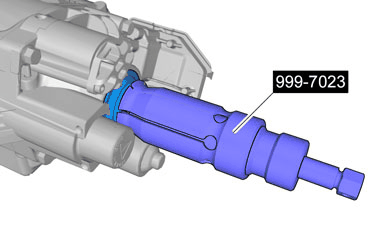

GLL173145

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

Remove the marked part.

Refer to: Special Tool: 999 7023
