Rear Brake Disc [2016-2020, B4204T23; B4204T27; B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details .

Remove brake pads rear, refer to: BRAKE PADS REAR

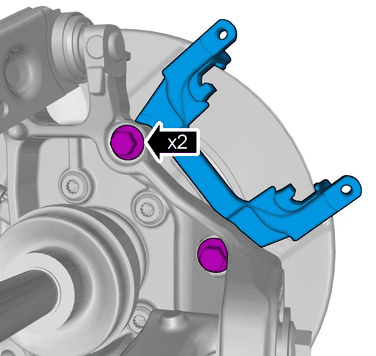

GLL1015183

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:Mount rear brake caliper

Stage 1: 90 Nm
Stage 2: 45 °

GLL1031904

Courtesy of VOLVO CARS CORPORATION

Torque: Rear brake disc to wheel hub, 10Nm
