Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

See information about safety information brake system, refer to: SAFETY INFORMATION BRAKE SYSTEM

Remove relevant side front wheel, refer to: WHEELS

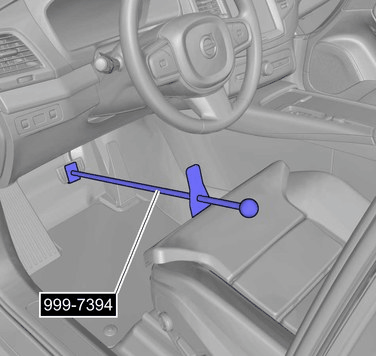

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

NOTE:

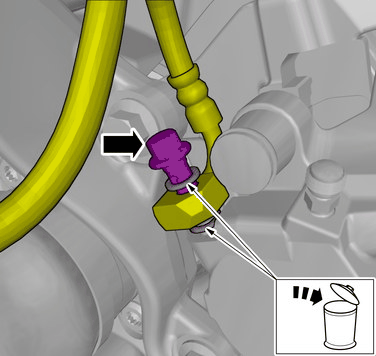

Use new seals.

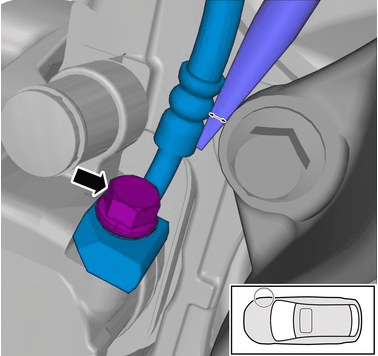

Undo the hose from the connection.

Torque: Brake hose (screw) to brake caliper, 40Nm

Remove brake pads front, refer to: BRAKE PADS, FRONT

Courtesy of VOLVO CARS CORPORATION

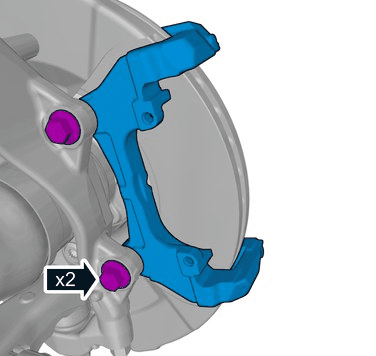

Remove the screws.

Torque: Mount front brake caliper, 200Nm

INSTALLATION

To install, reverse the removal procedure.

WARNING:

Make sure that the brake hose is not twisted and is correctly located.

VEHICLES WITH 18 INCH BRAKES

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure to place the component as the graphic shows.

Hint: Use a screwdriver.

Tighten the screw.

Torque: Brake hose (screw) to brake caliper, 40 Nm

Perform bleeding air brake system, refer to: BRAKE SYSTEM BLEEDING
