Antenna, Keyless Vehicle, Center [2016-2020, B4204T28 | 2020, B4204T39]: Removal

Remove floor console frame, refer to: FLOOR CONSOLE FRAME

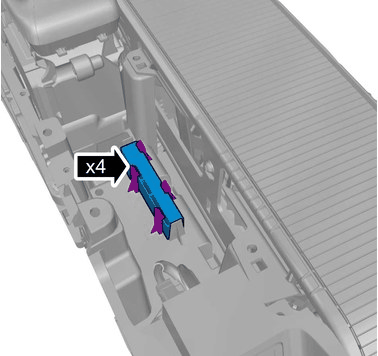

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

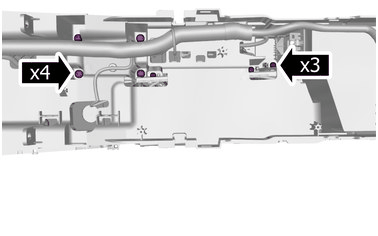

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

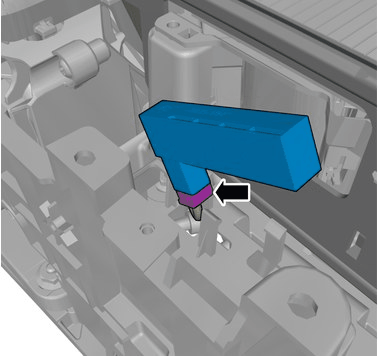

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

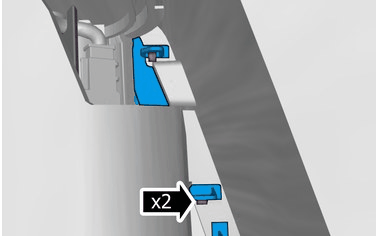

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

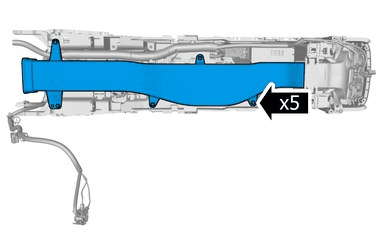

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

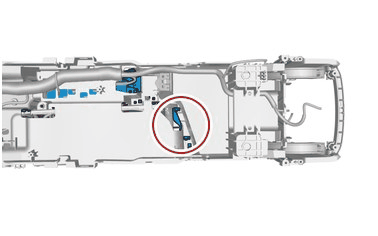

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

Release the catches.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

Use: Interior trim remover

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the marked part.
