12V Socket, Rear Floor Console [2017, 2019, 2020, B4204T23; B4204T27]: Removal

Courtesy of VOLVO CARS CORPORATION

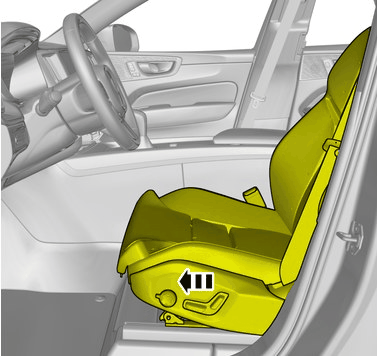

On both sides.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

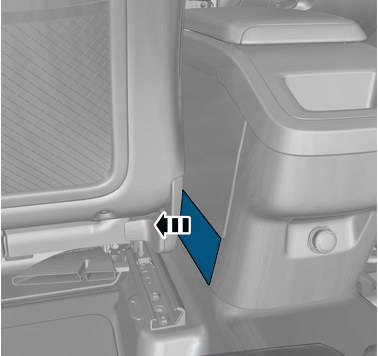

Remove the marked part.

On both sides.

Courtesy of VOLVO CARS CORPORATION

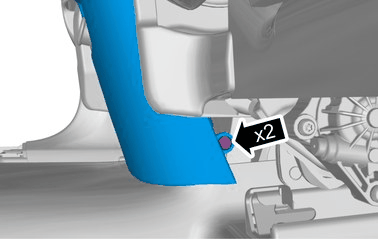

Remove the screw.

On both sides.

Courtesy of VOLVO CARS CORPORATION

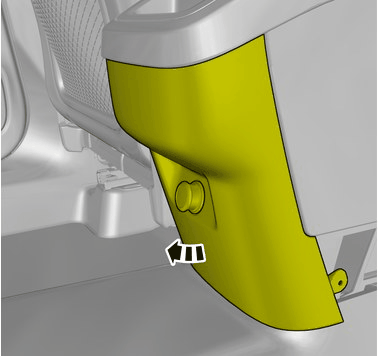

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The number of connectors may vary depending on the vehicle's equipment level.

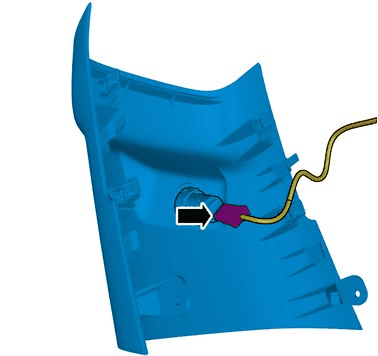

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

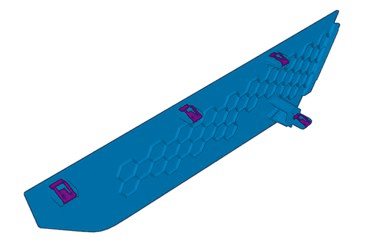

Make sure to replace the marked component with a new.
