12V Socket, Floor Console [2016-2019 | 2020, B4204T23; B4204T27 | 2020, B4204T28 | 2020, B4204T39]: Removal

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

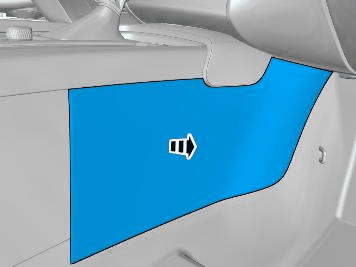

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

VEHICLES WITH 2-ZONE AIR CONDITIONING SYSTEM A/C

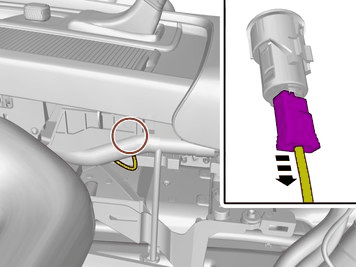

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

VEHICLES WITH 4-ZONE AIR CONDITIONING SYSTEM A/C

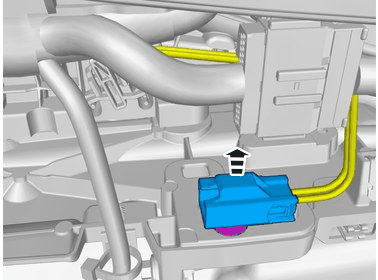

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

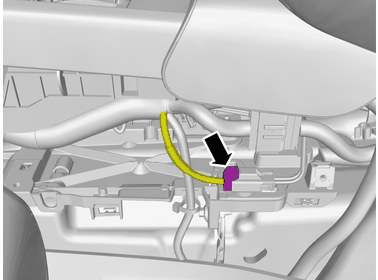

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

Loosen the marked detail/details.

ALL VEHICLES

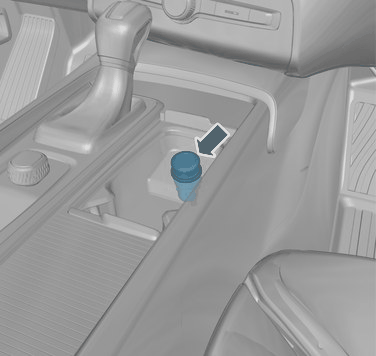

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

The part is not to be reused.

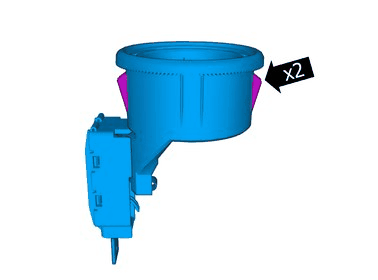

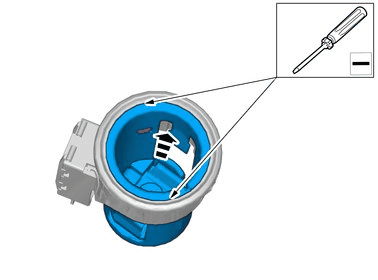

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Remove the marked part.
