Seat, Second Row [2016-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

CONCERNS OUTER POSITION

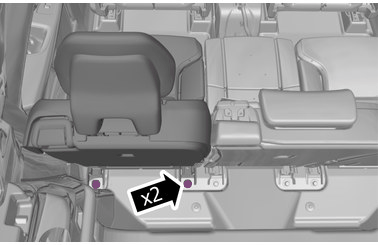

GLL1004389

Courtesy of VOLVO CARS CORPORATION

Torque: Rear seat, to body, 40Nm

Remove the screws.

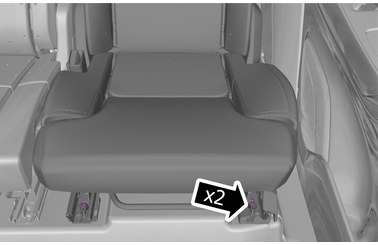

GLL1004127

Courtesy of VOLVO CARS CORPORATION

Torque: Rear seat, to body, 40Nm

Remove the screws.

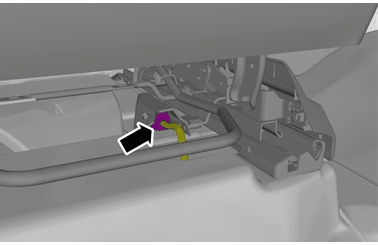

GLL1030862

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

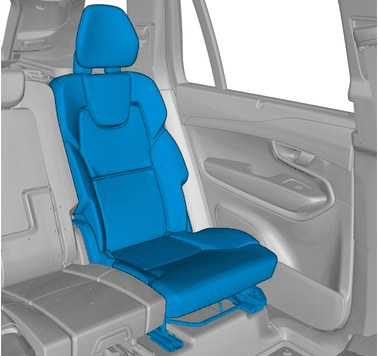

GLL1012589

Courtesy of VOLVO CARS CORPORATION

HINT: This step may require the aid of another technician.

Remove the marked part.

CONCERNS CENTER POSITION

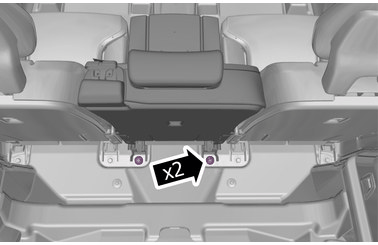

GLL1041567

Courtesy of VOLVO CARS CORPORATION

Torque: Rear seat, to body, 40Nm

Remove the screws.

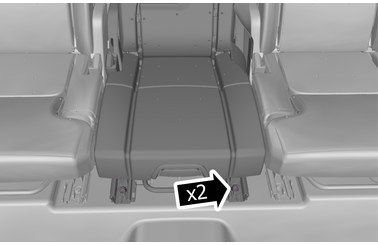

GLL1039661

Courtesy of VOLVO CARS CORPORATION

Torque: Rear seat, to body, 40Nm

Remove the screws.

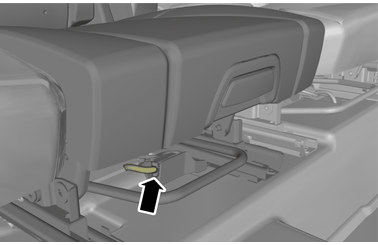

GLL1000168

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

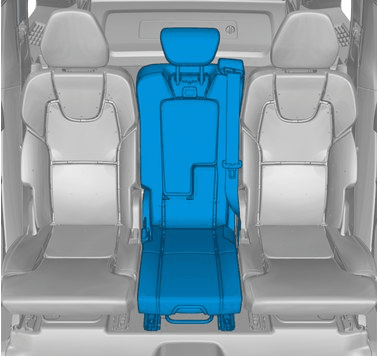

GLL1023541

Courtesy of VOLVO CARS CORPORATION

NOTE:

This step requires the aid of another technician.

Remove the marked part.

ALL VEHICLES
