Seat Cushion, Rear Seat [2016-2020]: Removal

Remove relevant side seat, second row, refer to: SEAT, SECOND ROW

CONCERNS CENTER POSITION

Remove the child seat, refer to: CHILD SAFETY SEAT

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

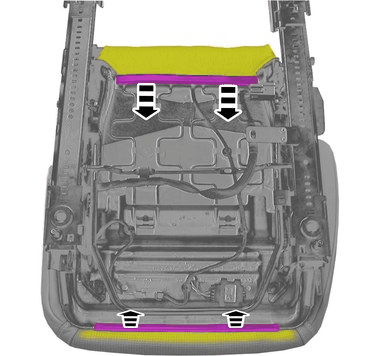

Release the catches.

On both sides.

Courtesy of VOLVO CARS CORPORATION

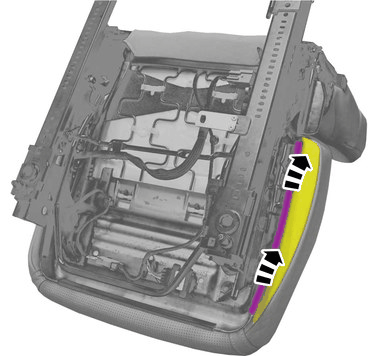

Release the catches.

Courtesy of VOLVO CARS CORPORATION

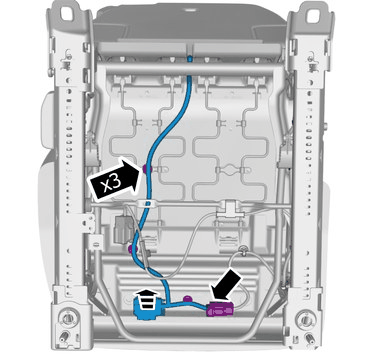

Disconnect the connector.

Remove the cable harness clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the fasteners.

Use:  Hogring pliers

Remove heating element backrest cushion, refer to: HEATING COIL BACKREST CUSHION
