Seat Cushion Fan, Rear (Excellence) [2017-2020, B4204T28 | 2020, B4204T39]: Removal

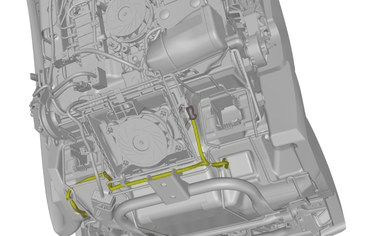

Remove seat, rear (Excellence), refer to: SEAT, REAR EXCELLENCE)

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

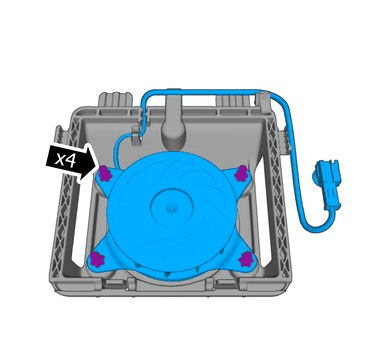

Loosen the marked detail.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

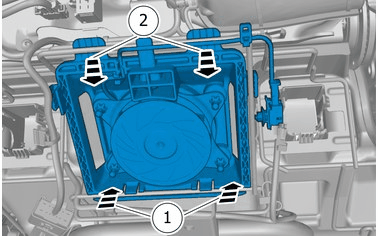

Release the locks.
