Head Restraint Privacy Screen (Excellence) [2019-2020, B4204T28 | 2020, B4204T39]: Installation
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

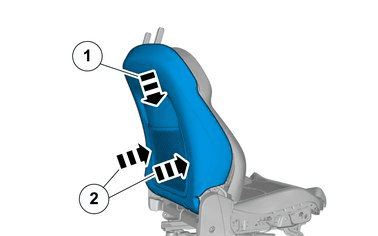

Install the marked component.
A figure in a circle denotes the order in which the different stages in the picture are to be carried out.
 Courtesy of VOLVO CARS CORPORATION
|

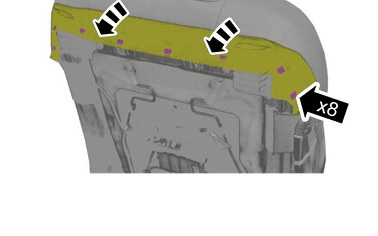

Install the screws.
 Courtesy of VOLVO CARS CORPORATION
|

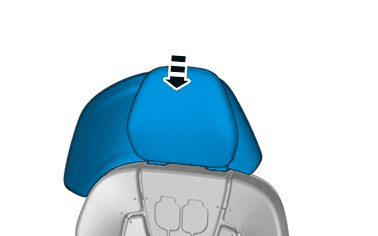

CAUTION:
Check that the component has locked in its bottom position.
Install the marked component.
