Head Restraint Front Seat [2016-2019]: Removal

GLL1031343

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Remove back rest, rear panel, refer to: BACK REST REAR PANEL

GLL1035531

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

GLL1006634

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1036829

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Remove the marked part.

GLL1028658

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1000231

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1021629

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Remove the marked part.

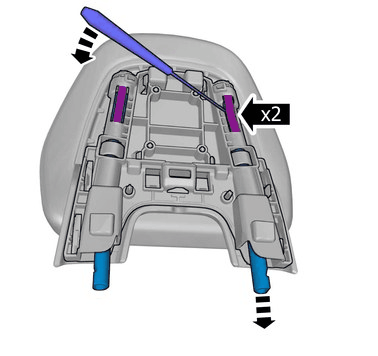

GLL1032012

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Remove the marked detail/details.

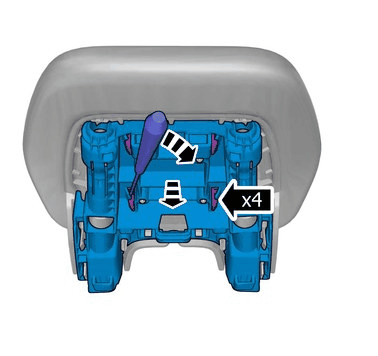

GLL1015523

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Remove the marked part.

GLL1041877

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
