Front Seat Heater [2016-2020]: Removal

Remove the upholstery, refer to: FRONT SEAT BACKREST

Remove the upholstery, refer to: FRONT SEAT CUSHION

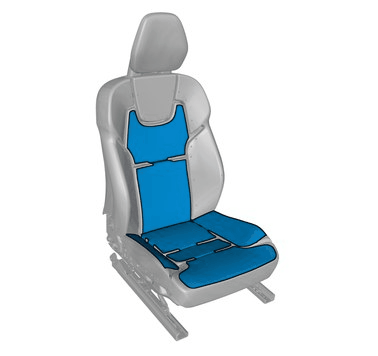

GLL1003979

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1007666

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1034462

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Pull carefully.

Loosen the marked detail/details.

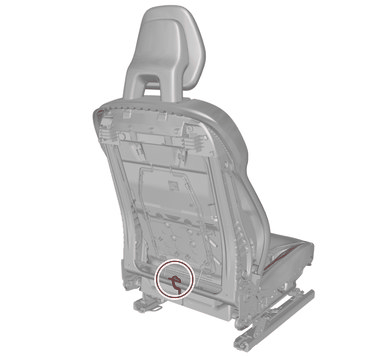

GLL1018775

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

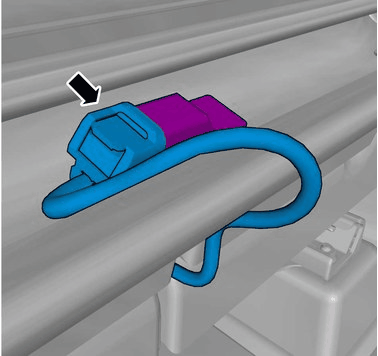

GLL1004951

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the marked part.

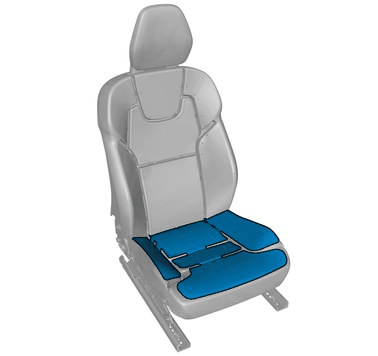

GLL1029790

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1003568

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Pull carefully.

Loosen the marked detail/details.

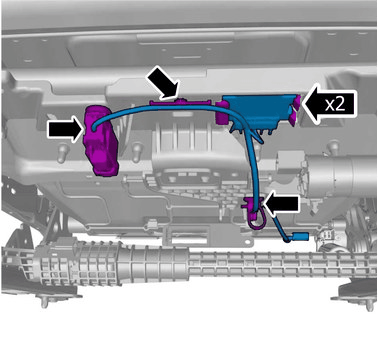

GLL1040662

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

Disconnect the connector.

Release the catches.

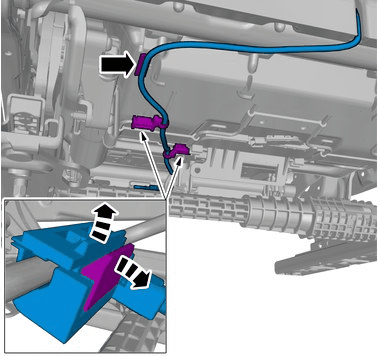

GLL1028847

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

Remove the marked part.
