Front Seat Cushion [2016-2020]: Removal

Courtesy of VOLVO CARS CORPORATION

Place the component where indicated in the graphic.

Remove relevant side front seat, refer to: FRONT SEAT

Remove side panel front seat, refer to: SIDE PANEL FRONT SEAT

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

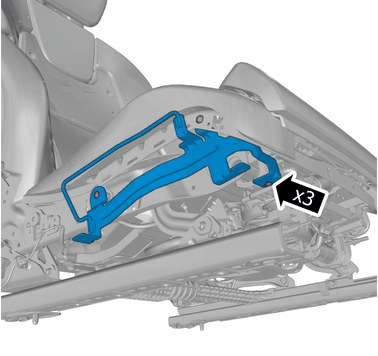

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

On both sides.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Release the catch.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

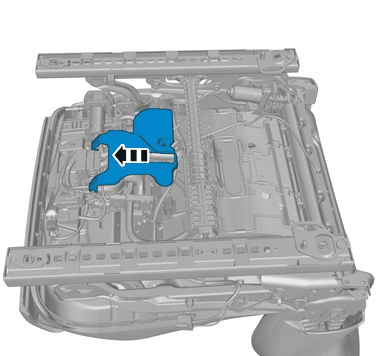

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

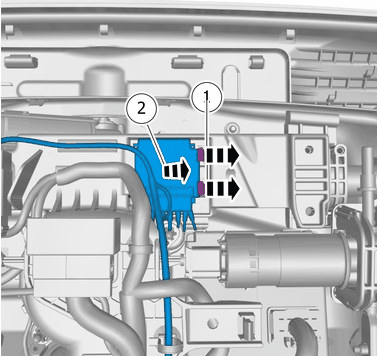

Remove the fasteners.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

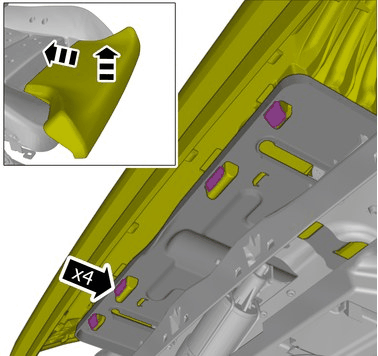

Release the catches.

Remove the marked part.

VEHICLES WITH POWER SEATS

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the fasteners.

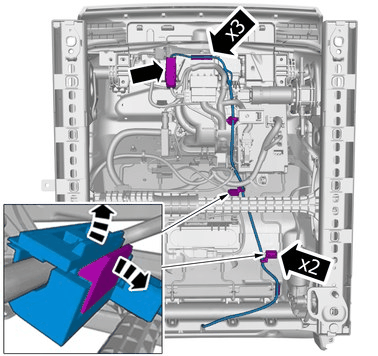

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

Disconnect the connector.

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

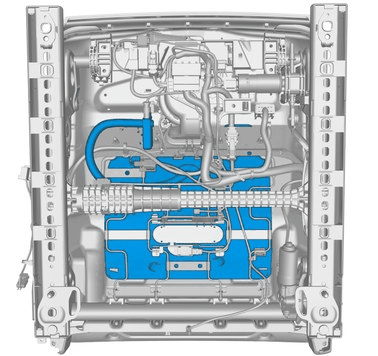

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Remove the marked part.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

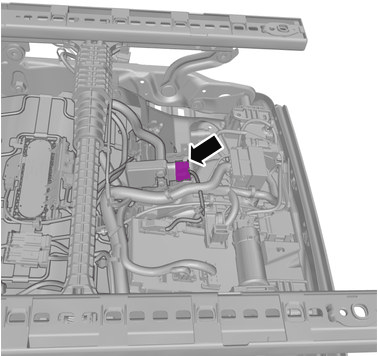

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

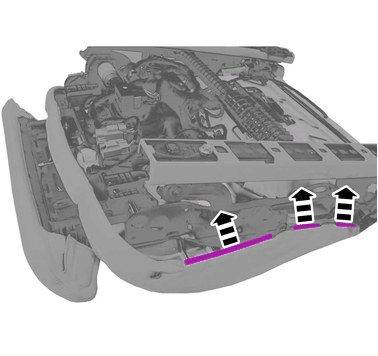

Release the catches.

Courtesy of VOLVO CARS CORPORATION

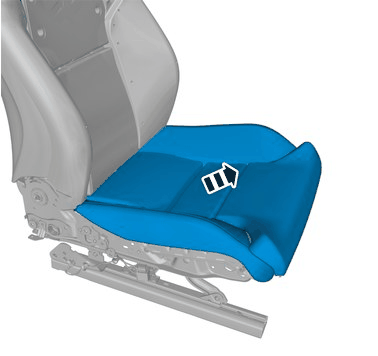

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

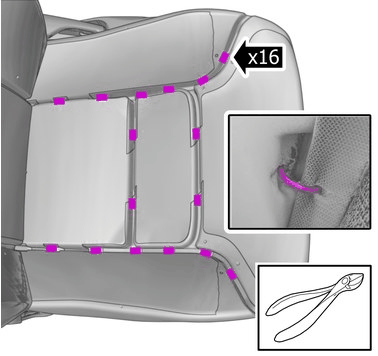

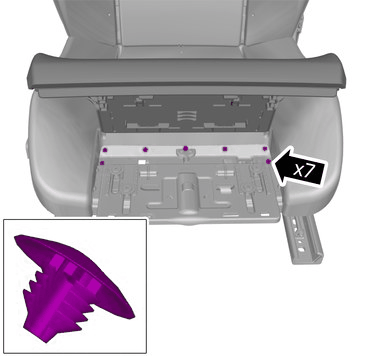

Remove the fasteners.

VEHICLES WITH SEAT CUSHION EXTENSION

Courtesy of VOLVO CARS CORPORATION

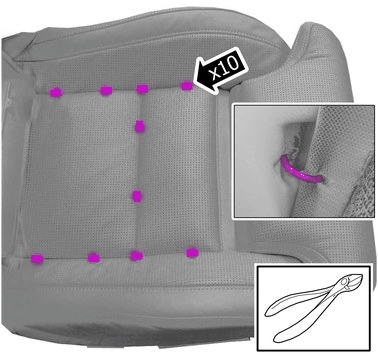

Remove the fasteners.
