Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

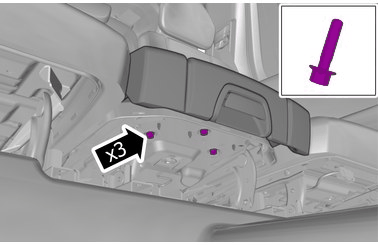

Remove the screws.

Torque: Child safety seat, to Rear seat, 8Nm

Courtesy of VOLVO CARS CORPORATION

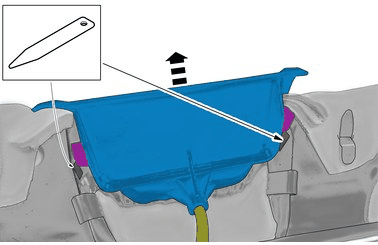

Remove the marked part.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

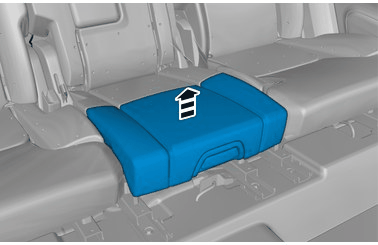

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

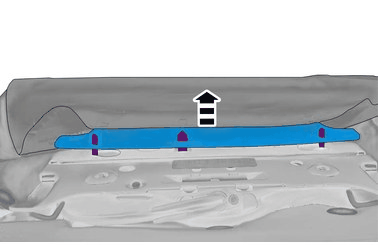

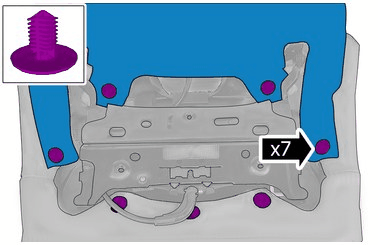

Remove the fasteners.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

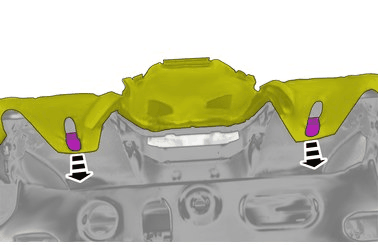

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

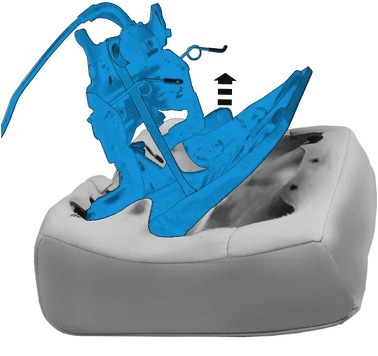

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.
