Driver's Airbag [2016-2020]: Installation

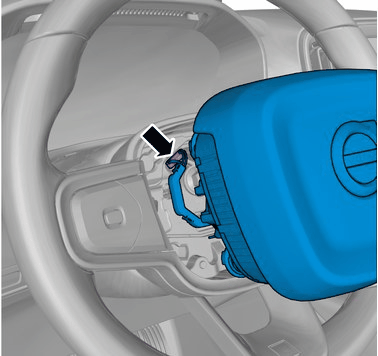

GLL1015622Courtesy of VOLVO CARS CORPORATION

Connect the connector.

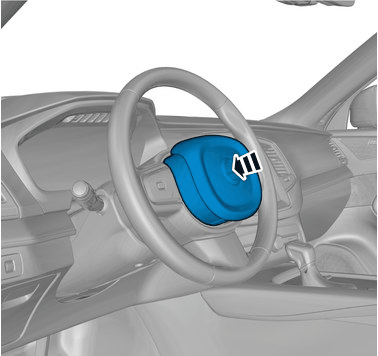

GLL1033517Courtesy of VOLVO CARS CORPORATION
WARNING:

Make sure that the component has locked properly in position by pulling it towards you.

Install the marked component.

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Perform supplemental restraint system (SRS), post check, refer to: SUPPLEMENTARY RESTRAINT SYSTEM
