Air Bag Supplemental Restraint System [2016-2019, B4204T23; B4204T27]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: Front seat to body, 40Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: Front seat to body, 40Nm

Courtesy of VOLVO CARS CORPORATION

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

WARNING:

The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

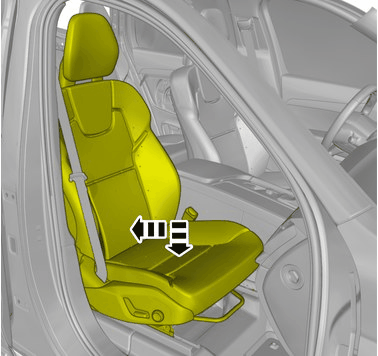

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Disconnect the connector.

Remove the fastener.

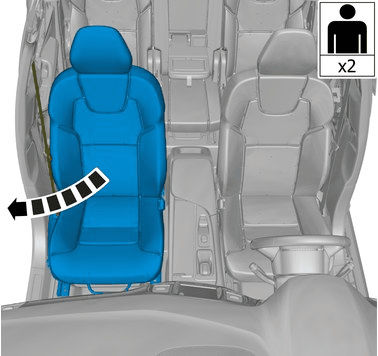

Courtesy of VOLVO CARS CORPORATION

HINT: This step may require the aid of another technician.

Remove the marked part.

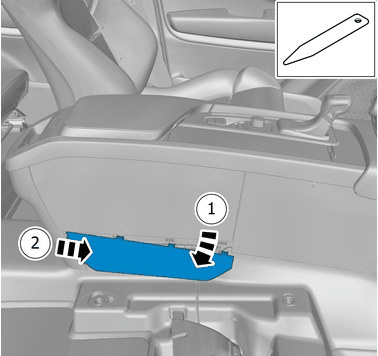

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Refer to: Special Tool: 981 4071

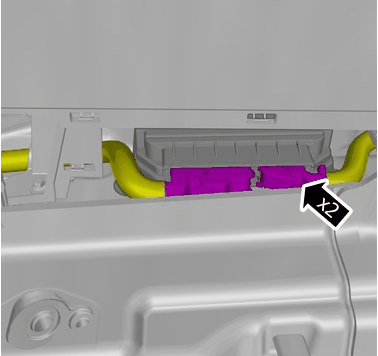

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

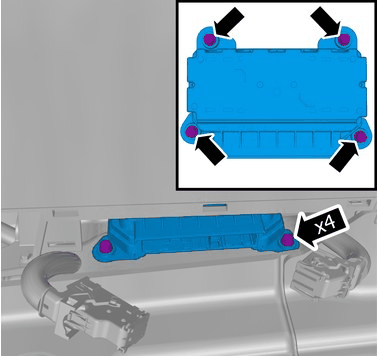

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

On both sides.

Torque: Supplemental Restraint System Module (SRS), to Body, 10Nm
